RCCN DL Door Latch





Material: door buckle. Qualified NYLON66 ( black ), fire rating of 94V-2, not easy to aging, high degree of insulation.

Use method : first machine plate and the fixed plate, and then the product into the press, can make door two plate buckling.

Usage: PC board and board fixed, displacing the screw, no tool is needed to complete the assembly. From the compound switch using

Products with spring




Item No.

Size

Packing
DL-1

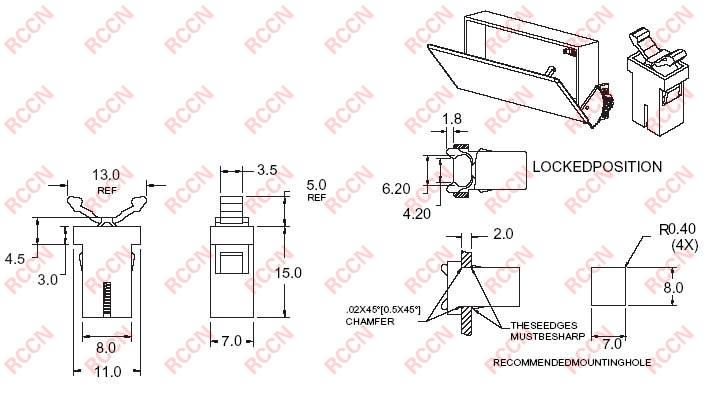

As shown in Figure

500PCS
