RCCN PTCV Push Mount Tie
| Material：NYLON66，fireproof 94V-2 Page number :B19 |
|
Item No . |
Length |
Wide |
Max. band |
hole dia. |
board thickness |
MinTensile Strength |
Packing |
| Natural | mm | mm | mm | mm | mm | kgs | |

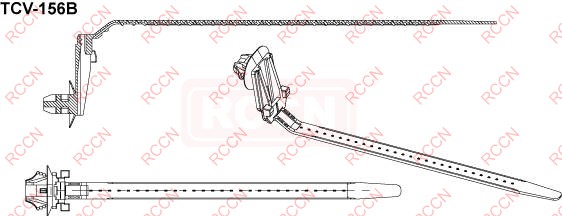

| PTCV-156B | 156 | 7.0 | 35 | 7.0 | 2.5-5 | 40 | 100 |
| PTCV-181B | 181 | 8.8 | 45 | 10 | 3-4 | 40 | 100 |

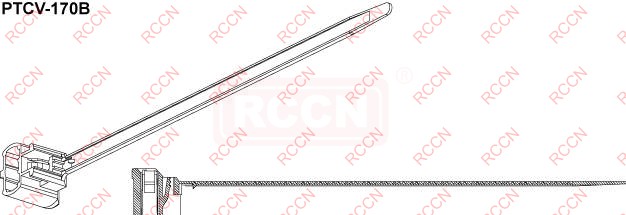

| PTCV-170B | 170 | 5.0 | 40 | 5 | - | 18 | 100 |

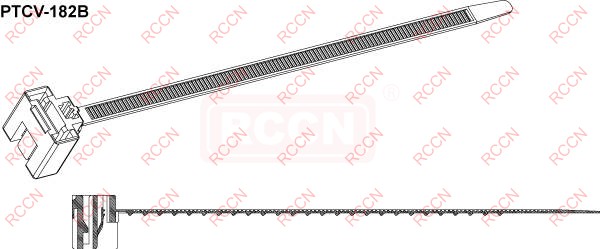

| PTCV-182B | 182 | 6.0 | 45 | 6 | - | 40 | 100 |
