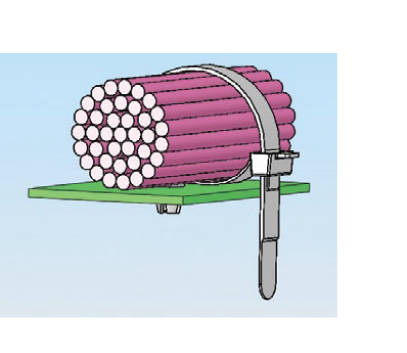

RCCN RMC Rivet Mount Cable Tie
Note:use RCCN SR series nylon rivet suit to different board thinckness and hole, such as RMC-SR4-6B
Material:NYLON66,fireproof 94V-2 |
Item No . | Length | Wide | Max. band cable range |
hole dia. |
board thickness |
Loading ability |
Packing |
Natural | mm | mm | mm | mm | mm | kgs | |
RMC-130B | 128 | 9.0 | 30 | 8.0 | 2.5 | 40 | 100 |
RMC-160B | 160 | 9.0 | 40 | 8.0 | 2.5 | 40 | 100 |
RMC-170B | 169 | 9.0 | 40 | 7.0 | 2.5 | 40 | 100 |
RMC-SR4-X | 169 | 9.0 | 40 | 4.1 | 1.5-8 | 40 | 100 |
RMC-SR5-X | 169 | 9.0 | 40 | 5.1 | 2.5-8 | 40 | 100 |
RMC-SR6-X | 169 | 9.0 | 40 | 6.1 | 1-3.0 | 40 | 100 |
