RCCN FF Fast Foot
Material:NYLON66(black) ULapproved,fireproof 94V-2,FG4 is made of ABS Usage:open holes accoding to the sizes,input the fast foot can fix it. Characteristics:fixed no need to use screw,easy to install.. |

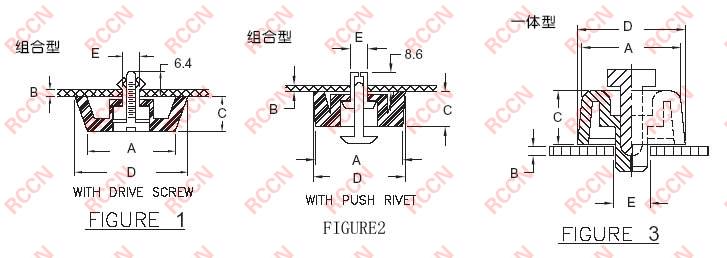

Item No. | E Hole Dia |
B Panel Thick |
A |
D
|
C | Fig.No. |
FF-001B | 5.1 | 1.0-2.3 | 20 | 24 | 14 | FG.1 |
FF-004B | 5.1 | 1.0-2.3 | 18 | 20 | 10 | |
FF-015B | 5.1 | 0.8-2.0 | 28 | 30 | 15 | |
FF-003-P3055B | 3.1 | 0.8-1.8 | 13 | 14 | 5.5 | FG.2 |
FF-005-P4050B | 4.1 | 0.8-1.8 | 20 | 21 | 4.2 | |
FF-005-P4060B | 4.1 | 1.8-2.8 | 20 | 21 | 4.2 | |
FF-005-P4070B | 4.1 | 2.9-3.7 | 20 | 21 | 4.2 | |
FF-005-P4080B | 4.1 | 3.8-4.8 | 20 | 21 | 4.2 | |
FF-006-P4060B | 4.1 | 0.6-1.0 | 14 | 15 | 6.0 | |
FF-006-P4070B | 4.1 | 1.0-2.0 | 14 | 15 | 6.0 | |
FF-006-P4080B | 4.1 | 2.0-3.1 | 14 | 15 | 6.0 | |
FF-006-P5065B | 5.1 | 0.8-1.2 | 14 | 15 | 6.0 | |
FF-006-P5075B | 5.1 | 1.3-2.3 | 14 | 15 | 6.0 | |
FF-008-P4060B | 4.1 | 0.8-1.8 | 20 | 21 | 6.0 | |
FF-008-P4070B | 4.1 | 1.9-2.8 | 20 | 21 | 6.0 | |
FF-008-P4080B | 4.1 | 2.9-4.0 | 20 | 21 | 6.0 | |
FF-009-P4060B | 4.1 | 0.8-1.8 | 20 | 21 | 8.0 | |
FF-009-P4070B | 4.1 | 0.8-2.0 | 20 | 21 | 8.0 | |
FF-009-P4080B | 4.1 | 2.1-3.0 | 20 | 21 | 8.0 | |
FF-010-P4070B | 4.1 | 1.0-2.0 | 14 | 15 | 9.0 | |
FF-010-P4080B | 4.1 | 2.0-3.1 | 14 | 15 | 9.0 | |
FF-013-P3545B | 3.6 | 0.5-1.2 | 10 | 11 | 4.0 | |
FF-013-P3555B | 3.6 | 1.2-2.0 | 10 | 11 | 4.0 | |
FF-013-P3560B | 3.6 | 1.5-2.2 | 10 | 11 | 4.0 | |
FF-013-P3570B | 3.6 | 2.5-3.2 | 10 | 11 | 4.0 | |
SFF-017 | 8.1 | 0.8-1.5 | 18 | 20 | 10 | FG.3 |
SFF-018 | 8.1 | 0.8-1.5 | 18 | 20 | 10 | |
SFF-021 | 7.7 | 0.8-1.5 | 20 | 21 | 6 | |
SFF-023 | 8.0 | 0.8-1.5 | 23 | 25 | 5 | |
SFF-024 | 8.1 | 0.8-1.2 | 18 | 20 | 12 | |
SFF-025 | 8.1 | 0.8-1.5 | 18 | 20 | 15 | |
SFF-026 | 8.1 | 1.0-2.0 | 18 | 20 | 18 | |
SFF-028 | 8.1 | 0.8-1.5 | 18 | 20 | 15 | |

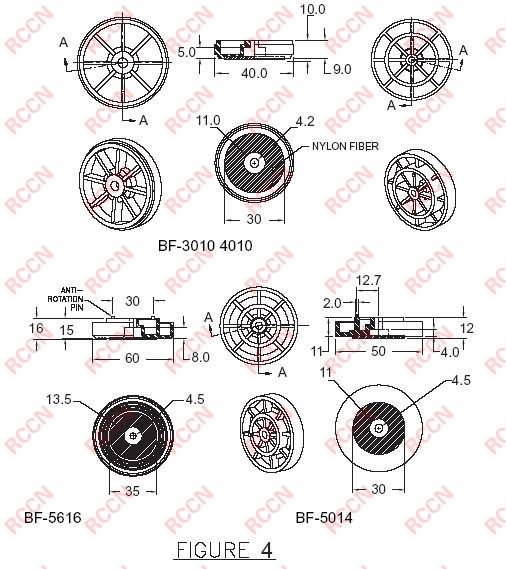

BF-3010 | 3.5 | 0.8-1.2 | 30 | 30 | 10 | FG.4 |
BF-4010 | 4.5 | 0.8-1.2 | 40 | 40 | 10 | |
BF-5014 | 4.5 | 0.8-1.2 | 50 | 50 | 14 | |
BF-5610 | 4.5 | 0.8-1.2 | 56 | 60 | 10 | |
BF-5616 | 4.5 | 0.8-1.2 | 56 | 60 | 16 |
