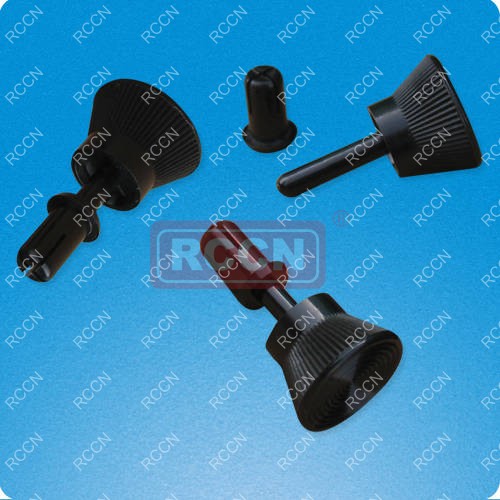

RCCN SRT Nylon Snap Rivet
Material:NYLON66 UL approved,fireproof 94V-2 Good quality,easy to install Color: black or white Packing: 1000PCS/bag |
Item No. | Hole Dia |

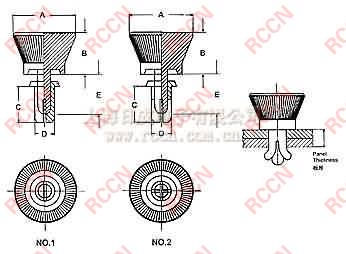

Panel Thick | A | B | C | D | E | Fig.No. |
SRT3035 | 3.1 | 1.0-2.0 | 10.0 | 8.0 | 3.5 | 3.0 | 6.6 | No.1 |
SRT3045 | 3.1 | 2.0-3.0 | 10.0 | 8.0 | 4.5 | 3.0 | 6.6 | |
SRT3055 | 3.1 | 3.0-4.0 | 10.0 | 8.0 | 5.5 | 3.0 | 6.6 | |
SRT3065 | 3.1 | 4.0-5.0 | 10.0 | 8.0 | 6.5 | 3.0 | 9.0 | |
SRT3075 | 3.1 | 5.0-6.0 | 10.0 | 8.0 | 7.5 | 3.0 | 9.0 | |
SRT3080 | 3.1 | 5.5-6.5 | 10.0 | 8.0 | 8.0 | 3.0 | 9.0 | |
SRT3535 | 3.6 | 1.0-2.0 | 10.0 | 8.0 | 3.5 | 3.5 | 6.6 | |
SRT3545 | 3.6 | 2.0-3.0 | 10.0 | 8.0 | 4.5 | 3.5 | 6.6 | |
SRT3555 | 3.6 | 3.0-4.0 | 10.0 | 8.0 | 5.5 | 3.5 | 6.6 | No.2 |
SRT3560 | 3.6 | 3.4-4.5 | 10.0 | 8.0 | 6.0 | 3.5 | 9.0 | |
SRT3570 | 3.6 | 4.5-5.5 | 10.0 | 8.0 | 7.0 | 3.5 | 9.0 | |
SRT3580 | 3.6 | 5.5-6.5 | 10.0 | 8.0 | 8.0 | 3.5 | 9.0 | |
SRT4050 | 4.1 | 2.5-3.5 | 12.0 | 8.0 | 5.0 | 4.0 | 7.6 | |
SRT4060 | 4.1 | 3.5-4.5 | 12.0 | 8.0 | 6.0 | 4.0 | 7.6 | |
SRT4070 | 4.1 | 4.5-5.5 | 12.0 | 8.0 | 7.0 | 4.0 | 11.2 | |
SRT4080 | 4.1 | 5.5-6.5 | 12.0 | 8.0 | 8.0 | 4.0 | 11.2 | |
SRT4090 | 4.1 | 6.5-7.5 | 12.0 | 8.0 | 9.0 | 4.0 | 11.2 | |
SRT4100 | 4.1 | 7.5-8.5 | 12.0 | 8.0 | 10.0 | 4.0 | 11.2 |
