RCCN SG Self-Retaining Screw Grommet
Material:NYLON66 UL approved,fireproof 94V-2 Good quality,easy to install Color:black Packing:100pcs/bag |

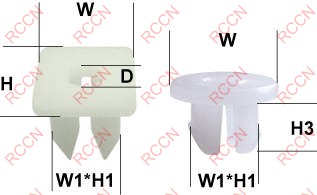

Item No. | Head W*H |
Hole dia W1*H1 |
Length H3 |
Screw hole D |

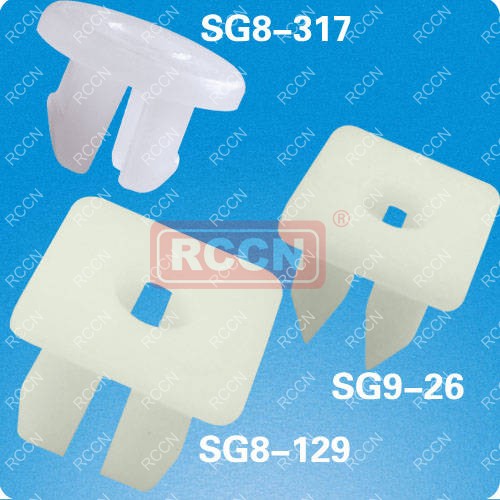

SG9-26 | 12*12 | 8*9 | 10.5 | #10 |
SG8-317 | 15 | 8.3 | 8.0 | #14 |
SG7-25 | 9.2*9.2 | 7*7 | 6.6 | #8 |
SG7-179 | 12*12 | 7*7.5 | 8.0 | #6 |
SG9-126 | 14.1*14 | 9*9 | 8.0 | #10 |
SG8-553 | 13.4*13.4 | 8*8 | 8.3 | #12 |
SG7-180 | 10.3*10.3 | 7*7 | 8.1 | #8 |
SG8-129 | 13*13 | 8.5*8.5 | 8.0 | #10 |
SG8-130 | 15*13 | 8.5*10.5 | 8.0 | #14 |
SG7-433 | 10.5*10.5 | 7.2 | 8.5 | #6 |
SG8-32 | 16.7*16.7 | 8*8.5 | 7.9 | #10 |
SG9-481 | 17 | 9*9 | 8.0 | #10 |
SG9-1006 | 14.4*14.4 | 9.9*9 | 10.8 | #10 |
SG9-1005 | 14 | 9.4*9.1 | 10.0 | #10 |
