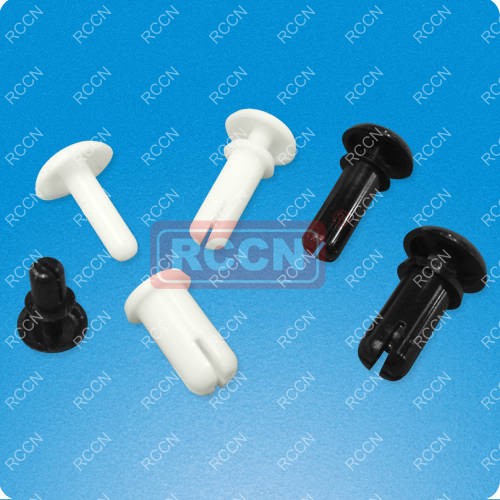

RCCN SR Nylon Snap Rivet
Material:NYLON66 UL approved,fireproof 94V-2 Good quality,easy to install |
|

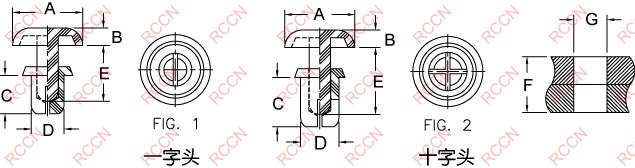

Fix hole dia. G |
Suitable board thickness F |
Dimensions | Pull KG |
NO. |
|
|||||
Black | White | A | B | C | D | E | |||||
SR2-2.4B | SR2-2.4W | 2.1-2.2 | 0.6-1.2 | 4.2 | 1.2 | 2.4 | 2.0 | 2.8 | 3 |
|
1000PCS |
SR2-3.2B | SR2-3.2W | 1.3-2.0 | 4.2 | 1.2 | 3.2 | 2.0 | 3.8 | ||||
SR2-4.0B | SR2-4.0W | 2.1-2.8 | 4.2 | 1.2 | 4.0 | 2.0 | 5.5 | ||||
SR2-4.8B | SR2-4.8W | 2.9-3.6 | 4.2 | 1.2 | 4.8 | 2.0 | 5.5 | ||||
SR2-5.6B | SR2-5.6W | 3.7-4.4 | 4.2 | 1.2 | 5.6 | 2.0 | 7.2 | ||||
SR2-6.4B | SR2-6.4W | 4.5-5.2 | 4.2 | 1.2 | 6.4 | 2.0 | 7.1 | ||||
SR2.6-3.2B | SR2.6-3.2W | 2.6-2.7 | 1.0-2.0 | 5.0 | 1.4 | 3.2 | 2.6 | 4.6 | 5 | 1 | 1000PCS |
SR2.6-4.2B | SR2.6-4.2W | 2.1-3.0 | 5.0 | 1.4 | 4.2 | 2.6 | 4.6 | ||||
SR2.6-4.8B | SR2.6-4.8W | 2.7-3.6 | 5.0 | 1.4 | 4.8 | 2.6 | 6.2 | ||||
SR2.6-5.5B | SR2.6-5.5W | 3.4-4.3 | 5.0 | 1.4 | 5.5 | 2.6 | 6.2 | ||||
SR2.6-6.4B | SR2.6-6.4W | 4.3-5.2 | 5.0 | 1.4 | 6.4 | 2.6 | 7.8 | ||||
SR2.6-7.2B | SR2.6-7.2W | 5.1-6.0 | 5.0 | 1.4 | 7.2 | 2.6 | 7.8 | ||||
SR3-3.5B | SR3-3.5W | 3.1-3.2 | 1.0-2.0 | 6.4 | 1.6 | 3.5 | 3.0 | 5.1 | 8 | 1 | 1000PCS |
SR3-4.5B | SR3-4.5W | 2.0-3.0 | 6.4 | 1.6 | 4.5 | 3.0 | 5.1 | ||||
SR3-5.5B | SR3-5.5W | 3.0-4.0 | 6.4 | 1.6 | 5.5 | 3.0 | 6.1 | ||||
SR3-6.5B | SR3-6.5W | 4.0-5.0 | 6.4 | 1.6 | 6.5 | 3.0 | 6.1 | ||||
SR3-7.5B | SR3-7.5W | 5.0-6.0 | 6.4 | 1.6 | 7.5 | 3.0 | 7.1 | ||||
SR3-8B | SR3-8W | 5.5-6.5 | 6.4 | 1.6 | 8.0 | 3.0 | 7.1 | ||||
SR3-9B | SR3-9W | 6.5-7.5 | 6.4 | 1.6 | 9.0 | 3.0 | 9.0 | ||||
SR3-10B | SR3-10W | 7.5-8.5 | 6.4 | 1.6 | 10.0 | 3.0 | 11.0 | ||||
SR3-14.5B | SR3-14.5W | 11.5-13.0 | 6.4 | 1.6 | 14.5 | 3.0 | 15.5 | ||||
SR3-23B | SR3-23W | 20.5-21.5 | 6.4 | 1.6 | 23.0 | 3.0 | 24.0 | ||||
SR3.5-3.5B | SR3.5-3.5W | 3.6-3.7 | 1.2-2.1 | 6.4 | 1.6 | 3.5 | 3.5 | 5.1 | 12 | 2 | 1000PCS |
SR3.5-4.5B | SR3.5-4.5W | 2.2-3.1 | 6.4 | 1.6 | 4.5 | 3.5 | 6.1 | ||||
SR3.5-5B | SR3.5-5W | 2.7-3.6 | 6.4 | 1.6 | 5.0 | 3.5 | 7.1 | ||||
SR3.5-5.5B | SR3.5-5.5W | 3.2-4.1 | 6.4 | 1.6 | 5.5 | 3.5 | 7.1 | ||||
SR3.5-6B | SR3.5-6W | 3.7-4.6 | 6.4 | 1.6 | 6.0 | 3.5 | 7.1 | ||||
SR3.5-7B | SR3.5-7W | 4.7-5.6 | 6.4 | 1.6 | 7.0 | 3.5 | 9.0 | ||||
SR3.5-8B | SR3.5-8W | 5.7-6.6 | 6.4 | 1.6 | 8.0 | 3.5 | 9.0 | ||||
SR4-5B | SR4-5W | 4.1-4.2 | 2.5-3.5 | 8.0 | 1.8 | 5.0 | 4.0 | 7.1 | 20 | 2 | 1000PCS |
SR4-6B | SR4-6W | 3.5-4.5 | 8.0 | 1.8 | 6.0 | 4.0 | 7.1 | ||||
SR4-7B | SR4-7W | 4.5-5.5 | 8.0 | 1.8 | 7.0 | 4.0 | 9.0 | ||||
SR4-8B | SR4-8W | 5.5-6.5 | 8.0 | 1.8 | 8.0 | 4.0 | 9.0 | ||||
SR4-9B | SR4-9W | 6.5-7.5 | 8.0 | 1.8 | 9.0 | 4.0 | 11.0 | ||||
SR4-10B | SR4-10W | 7.5-8.5 | 8.0 | 1.8 | 10.0 | 4.0 | 11.0 | ||||
SR4-12B | SR4-12W | 9.0-10.5 | 8.0 | 1.8 | 12.0 | 4.0 | 14.0 | ||||
SR4-15.5B | SR4-15.5W | 12.5-14.0 | 8.0 | 1.8 | 15.0 | 4.0 | 16.6 | ||||
SR5-4.5B | SR5-4.5W | 5.1-5.2 | 1.5-2.5 | 9.0 | 2.2 | 4.5 | 5.0 | 6.5 | 25 | 2 | 1000PCS |
SR5-5.5B | SR5-5.5W | 2.5-3.5 | 9.0 | 2.2 | 5.5 | 5.0 | 6.5 | ||||
SR5-6.5B | SR5-6.5W | 3.5-4.5 | 9.0 | 2.2 | 6.5 | 5.0 | 8.5 | ||||
SR5-7.5B | SR5-7.5W | 4.5-5.5 | 9.0 | 2.2 | 7.5 | 5.0 | 8.5 | ||||
SR5-8.5B | SR5-8.5W | 5.5-6.5 | 9.0 | 2.2 | 8.5 | 5.0 | 10.5 | ||||
SR5-9.5B | SR5-9.5W | 6.5-7.5 | 9.0 | 2.2 | 9.5 | 5.0 | 10.5 | ||||
SR5-10.5B | SR5-10.5W | 7.5-8.5 | 9.0 | 2.2 | 10.5 | 5.0 | 12.0 | ||||
SR6-6B | SR6-6W | 6.1-6.2 | 2.5-4.0 | 12.0 | 2.5 | 6.0 | 6.0 | 9.0 | 30 | 2 | 1000PCS |
SR6-8B | SR6-8W | 4.0-5.5 | 12.0 | 3.0 | 8.0 | 6.0 | 10.0 |
