RCCN SRH Nylon Snap Rivet
Material:NYLON66, UL approved,fireproof 94V-2 Good quality,easy to install |
Item No. | Hole Dia G |
Panel Thick F |

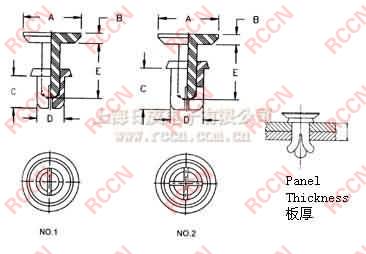

A | B | C | D | E | Fig.No. |
SRH3035 | 3.1 | 1.0-2.0 | 6.4 | 1.0 | 3.5 | 3.0 | 6.5 | No.1 |
SRH3045 | 3.1 | 2.0-3.0 | 6.4 | 1.0 | 4.5 | 3.0 | 6.5 | |
SRH3055 | 3.1 | 3.0-4.0 | 6.4 | 1.0 | 5.5 | 3.0 | 6.5 | |
SRH3065 | 3.1 | 4.0-5.0 | 6.0 | 1.0 | 6.5 | 3.0 | 10.0 | |
SRH3075 | 3.1 | 5.0-6.0 | 6.0 | 1.0 | 7.5 | 3.0 | 10.0 | |
SRH3080 | 3.1 | 5.5-6.5 | 6.0 | 1.0 | 8.0 | 3.0 | 10.0 | |
SRH3090 | 3.1 | 6.5-7.5 | 6.4 | 1.0 | 9.0 | 3.0 | 12.0 | |
SRH3100 | 3.1 | 7.5-8.5 | 6.4 | 1.0 | 10.0 | 3.0 | 12.0 | |
SRH3535 | 3.6 | 1.0-2.0 | 6.4 | 1.0 | 3.5 | 3.5 | 6.5 | No.2 |
SRH3545 | 3.6 | 2.0-3.0 | 6.4 | 1.0 | 4.5 | 3.5 | 6.5 | |
SRH3555 | 3.6 | 3.0-4.0 | 6.0 | 1.0 | 5.5 | 3.5 | 10.0 | |
SRH3560 | 3.6 | 3.5-4.5 | 6.0 | 1.0 | 6.0 | 3.5 | 10.0 | |
SRH3570 | 3.6 | 4.5-5.5 | 6.0 | 1.0 | 7.0 | 3.5 | 10.0 | |
SRH3580 | 3.6 | 5.5-6.5 | 6.0 | 1.0 | 8.0 | 3.5 | 10.0 |
