RCCN nylon cable gland- SR

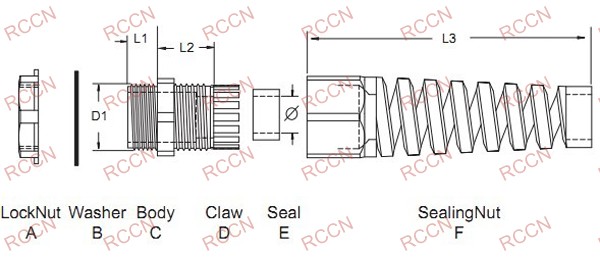

Kind of thread:metric,DIN PG,NPT。 Material:A.C.D.F are made of NYLON66.B.E are made of rubber NBR。 Pretect grade is upto IP67。 Color:white, black,other color can be manufactured Use:Make this gland through the tpanel hole,then fixed it with nut,make the cables through the seal nut, fix it with the locknut More choice:Length added gland,many other sizes of seal,glands made of rubber EPDM for outdoor use |
Thread |
Item No.
|
Thread
|
CableRange
¢ |
Thread
O.D. D1 |
Panel
Mounting Hole |
Thread
Length L1 |
Joint
Length L2+L3 |
Spanner
size A&F |
Std.Pkg.
pcs |
|
White
|
Black
|
|||||||||
Standard thread
|
METRIC
|
|
||||||||
AG-12SRW
|
AG-12SRB
|
M12×1.5
|
3-6.5
|
12
|
12-12.3
|
8
|
65
|
18/17
|
50PCS
|
|
AG-16SRW
|
AG-16SRB
|
M16×1.5
|
4-8
|
16
|
16-16.3
|
8
|
65
|
22/20
|
||
AG-18SRW
|
AG-18SRB
|
M18×1.5
|
5-10
|
18
|
18-18.3
|
8
|
78
|
24/22
|
||
AG-20SRW
|
AG-20SRB
|
M20×1.5
|
6-12
|
20
|
20-20.3
|
9
|
90
|
27/24
|
||
AG-22SRW
|
AG-22SRB
|
M22×1.5
|
10-14
|
22
|
22-22.3
|
10
|
100
|
30/27
|
||
AG-25SRW
|
AG-25SRB
|
M25×1.5
|
13-18
|
25
|
25-25.4
|
10
|
112
|
35/34
|
||
AG-27SRW
|
AG-27SRB
|
M27×1.5
|
13-18
|
27
|
27-27.4
|
10
|
112
|
35/34
|
||
PG DIN
|
|
|||||||||
PG-7SRW
|
PG-7SRB
|
PG7
|
3-6.5
|
12.5
|
12.5
|
8
|
65
|
18/17
|
50PCS
|
|
PG-9SRW
|
PG-9SRB
|
PG9
|
4-8
|
15.2
|
15.2
|
8
|
70
|
22/20
|
||
PG-11SRW
|
PG-11SRB
|
PG11
|
5-10
|
18.6
|
18.6
|
8
|
78
|
24/22
|
||
PG-13.5SRW
|
PG-13.5SRB
|
PG13.5
|
6-12
|
20.4
|
20.4
|
9
|
90
|
27/24
|
||
PG-16SRW
|
PG-16SRB
|
PG16
|
10-14
|
22.5
|
22.5
|
10
|
100
|
30/27
|
||
PG-21SRW
|
PG-21SRB
|
PG 21
|
13-18
|
28.3
|
28.3
|
10
|
112
|
36/34
|
||
Long thread
|
METRIC
|
|
||||||||
AG-12SRW
|
AG-12SRB
|
M12×1.5
|
3-6.5
|
12
|
12-12.3
|
15
|
65
|
18/17
|
50PCS
|
|
AG-16SRW
|
AG-16SRB
|
M16×1.5
|
4-8
|
16
|
16-16.3
|
15
|
65
|
22/20
|
||
AG-18SRW
|
AG-18SRB
|
M18×1.5
|
5-10
|
18
|
18-18.3
|
15
|
78
|
24/22
|
||
AG-20SRW
|
AG-20SRB
|
M20×1.5
|
6-12
|
20
|
20-20.3
|
15
|
90
|
27/24
|
||
AG-22SRW
|
AG-22SRB
|
M22×1.5
|
10-14
|
22
|
22-22.3
|
15
|
100
|
30/27
|
||
AG-25SRW
|
AG-25SRB
|
M25×1.5
|
13-18
|
25
|
25-25.4
|
15
|
112
|
35/34
|
||
PG DIN
|
|
|||||||||
PG-7SRW
|
PG-7SRB
|
PG7
|
3-6.5
|
12.5
|
12.5
|
15
|
65
|
18/17
|
50PCS
|
|
PG-9SRW
|
PG-9SRB
|
PG9
|
4-8
|
15.2
|
15.2
|
15
|
70
|
22/20
|
||
PG-11SRW
|
PG-11SRB
|
PG11
|
5-10
|
18.6
|
18.6
|
15
|
78
|
24/22
|
||
PG-13.5SRW
|
PG-13.5SRB
|
PG13.5
|
6-12
|
20.4
|
20.4
|
15
|
90
|
27/24
|
||
PG-16SRW
|
PG-16SRB
|
PG16
|
10-14
|
22.5
|
22.5
|
15
|
100
|
30/27
|
||
PG-21SRW
|
PG-21SRB
|
PG 21
|
13-18
|
28.3
|
28.3
|
15
|
112
|
36/34
|
||
|
NPT
|
|
||||||||
|
NPT 3/8SRW
|
NPT 3/8SRB
|
NPT 3/8″
|
4-8
|
16.5
|
16.5
|
15
|
70
|
22/20
|
50PCS
|
|
NPT 1/2SRW
|
NPT 1/2SRB
|
NPT 1/2″
|
6-12
|
21.3
|
21.3
|
13
|
92
|
27/24
|
|
|
NPT 3/4SRW
|
NPT 3/4SRB
|
NPT 3/4″
|
13-18
|
26.6
|
26.6
|
15
|
114
|
34/34
|
