RCCN nylon cable gland-mg

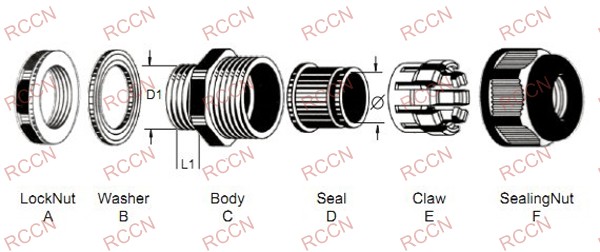

Thread:Metric。 Material:A.C.D.F are made of 66 NYLON66.B.Eare made of rubber NBR。 Pretect grade is upto IP67。 Color:white, black,other color can be manufactured Use:Make this gland through the panel hole,then fixed it with nut,make the cables through the seal nut, fix it with the locknut More choice:Length added gland,many other sizes of seal,glands made of rubber EPDM for outdoor use。 |
Item No.
|
Thread
|
CableRange
¢ |
Thread
O.D. D1 |
Panel
Mounting Hole |
Thread
Length L1 |
Joint
Length L2+L3 |
Spanner
size A&F |
Std.Pkg.
pcs |
||
White
|
Black
|
|||||||||
MG12B-05
|
M12×1.5
|
3-5.3
|
12
|
12-12.3
|
9
|
38
|
19
|
100PCS
|
||
MG12W-08
|
MG12B-08
|
M12×1.5
|
4-8
|
12
|
12-12.3
|
9
|
38
|
19
|
||
MG16B-07
|
M16×1.5
|
4-7
|
16
|
16-16.3
|
15
|
35
|
22
|
|||
MG16B-10
|
M16×1.5
|
6-10
|
16
|
16-16.3
|
15
|
35
|
22
|
|||
MG20B-11
|
M20×1.5
|
6-11
|
20
|
20-20.3
|
15
|
37
|
27
|
|||
MG20B-14
|
M20×1.5
|
9-14
|
20
|
20-20.3
|
15
|
37
|
27
|
|||
MG25B-16
|
M25×1.5
|
10-16
|
25
|
25-25.3
|
15
|
42
|
33
|
|||
MG25B-18
|
M25×1.5
|
13-18
|
25
|
25-25.3
|
15
|
42
|
33
|
|||
MG32B-22
|
M32×1.5
|
15-22
|
32
|
32-32.3
|
15
|
48
|
41
|
50PCS
|
||
MG32B-25
|
M32×1.5
|
18-25
|
32
|
32-32.3
|
15
|
48
|
41
|
|||
MG40B-25
|
M40×1.5
|
20-25
|
40
|
40-40.3
|
15
|
51
|
50
|
|||
MG40B-30
|
M40×1.5
|
24-30
|
40
|
40-40.3
|
15
|
51
|
50
|
|||
MG50B-32
|
M50×1.5
|
26-32
|
50
|
50-50.3
|
15
|
59
|
62
|
20PCS
|
||
MG50B-40
|
M50×1.5
|
30-40
|
50
|
50-50.3
|
15
|
59
|
62
|
|||
MG63B-46
|
M63×1.5
|
38-46
|
63
|
63-63.3
|
24
|
65
|
75
|
|||
MG63W-50
|
MG63B-50
|
M63×1.5
|
40-50
|
63
|
63-63.3
|
24
|
65
|
75
|
