RCCN MGE Nylon Cable Gland

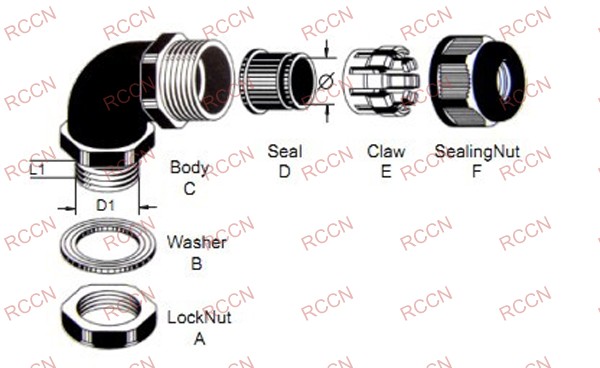

Thread:Metric Material:A.C.E.F made of NYLON66, B.D made of NBR Certificates:CE, SGS,REACH。 Fireproof:UL94V-2。 Operate Temperature:-50°C to 150°C。 Protect:IP68。 Color:light gray(RAL7035)、black(RAL9005) |
Item No. | Thread | CableRangeΦ | ThreadO.D.D1 | PanelMountingHole | ThreadLengthL1 | SpannersizeA&F | Std.PkgPcs | |
Black | White | |||||||
*MG16EA-07B | MG16EA-07G | M16*1.5 | 4-7 | 16 | 16-16.3 | 10 | 22/22 | 50PCS |
*MG16EA-10B | MG16EA-10G | M16*1.5 | 6-10 | 16 | 16-16.3 | 10 | 22/22 | |
*MG20EA-11B | MG20EA-11G | M20*1.5 | 6-11 | 20 | 20-20.3 | 15 | 27/27 | |
*MG20EA-14B | MG20EA-14G | M20*1.5 | 9-14 | 20 | 20-20.3 | 15 | 27/27 | |
MG25EA-16B | MG25EA-16G | M25*1.5 | 10-16 | 25 | 25-25.3 | 15 | 33/33 | |
MG25EA-18B | MG25EA-18G | M25*1.5 | 13-18 | 25 | 25-25.3 | 15 | 33/33 | |
MG32EA-22B | MG32EA-22G | M32*1.5 | 15-22 | 32 | 32-32.3 | 15 | 41/42 | |
MG32EA-25B | MG32EA-25G | M32*1.5 | 18-25 | 32 | 32-32.3 | 15 | 41/42 | |
MG40EA-25B | MG40EA-25G | M40*1.5 | 20-25 | 40 | 40-40.3 | 20 | 50/52 | |
MG40EA-30B | MG40EA-30G | M40*1.5 | 24-30 | 40 | 40-40.3 | 20 | 50/52 |
