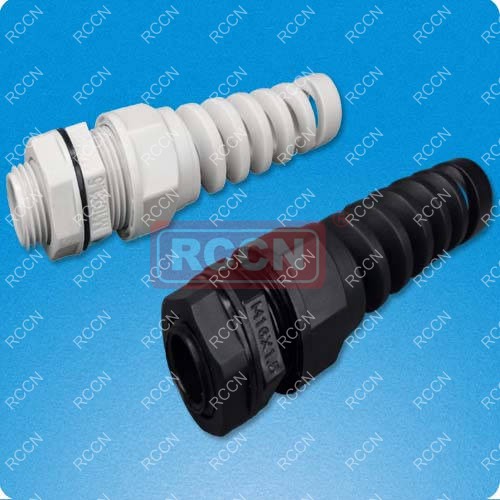

RCCN Strain Relief Cable Gland
 |
| Thread:metric/EN50262, DIN PG,NPT Material:A.C.D.F are made of NYLON66,B,E are made of silica gel rubber Certificate: CE, SGS,REACH。 Fireproof:UL94V-2。 Protect:IP68。 Colors:light gray,black Operate:-50°C to 200°C。 Remarks:Used in high temperature enviroment |
| Thread length |
Item No | Thread | CableRangeΦ | ThreadO.D.D1 | PanelMountingHole | ThreadLengthL1 | JointLengthL2+L3 | Spannersize
A&F |
Std.PkgPcs | |
| White | Black | |||||||||
| Standard thread |
METRIC | 100PCS | ||||||||
| AG-12SRWH | AG-12SRBH | M12*1.5 | 3-6.5 | 12 | 12-12.3 | 8 | 65 | 18/17 | ||
| AG-16SRWH | AG-16SRBH | M16*1.5 | 4-8 | 16 | 16-16.3 | 8 | 65 | 22/20 | ||
| AG-18SRWH | AG-18SRBH | M18*1.5 | 5-10 | 18 | 18-18.3 | 8 | 78 | 24/22 | ||
| AG-20SRWH | AG-20SRBH | M20*1.5 | 6-12 | 20 | 20-20.3 | 9 | 90 | 27/24 | ||
| AG-22SRWH | AG-22SRBH | M22*1.5 | 10-14 | 22 | 22-22.3 | 10 | 100 | 30/27 | ||
| AG-25SRWH | AG-25SRBH | M25*1.5 | 13-18 | 25 | 25-25.4 | 10 | 112 | 35/34 | ||
| AG-27SRWH | AG-27SRBH | M27*1.5 | 13-18 | 27 | 27-27.4 | 10 | 112 | 35/34 | ||
| PG | 100PCS | |||||||||
| PG-7SRWH | PG-7SRBH | PG7 | 3-6.5 | 12.5 | 12.5 | 8 | 65 | 18/17 | ||
| PG-9SRWH | PG-9SRBH | PG9 | 4-8 | 15.2 | 15.2 | 8 | 70 | 22/20 | ||
| PG-11SRWH | PG-11SRBH | PG11 | 5-10 | 18.6 | 18.6 | 8 | 78 | 24/22 | ||
| PG-13.5SRWH | PG-13.5SRBH | PG13.5 | 6-12 | 20.4 | 20.4 | 9 | 90 | 27/24 | ||
| PG-16SRWH | PG-16SRBH | PG16 | 10-14 | 22.5 | 22.5 | 10 | 100 | 30/27 | ||
| PG-21SRWH | PG-21SRBH | PG21 | 13-18 | 28.3 | 28.3 | 10 | 112 | 36/34 | ||
| Long thread |
METRIC | 100PCS | ||||||||
| AG-12SRLWH | AG-12SRLBH | M12 | 3-6.5 | 12 | 12-12.3 | 15 | 65 | 18/17 | ||
| AG-16SRLWH | AG-16SRLBH | M16 | 4-8 | 16 | 16-16.3 | 15 | 65 | 22/20 | ||
| AG-18SRLWH | AG-18SRLBH | M18 | 5-10 | 18 | 18-18.3 | 15 | 78 | 24/22 | ||
| AG-20SRLWH | AG-20SRLBH | M20 | 6-12 | 20 | 20-20.3 | 15 | 90 | 27/24 | ||
| AG-22SRLWH | AG-22SRLBH | M22 | 10-14 | 22 | 22-22.3 | 15 | 100 | 30/27 | ||
| AG-25SRLWH | AG-25SRLBH | M25 | 13-18 | 25 | 25-25.4 | 15 | 112 | 35/34 | ||
| PG | 100PCS | |||||||||
| PG-7SRLWH | PG-7SRLBH | PG7 | 3-6.5 | 12.5 | 12.5 | 15 | 65 | 18/17 | ||
| PG-9SRLWH | PG-9SRLBH | PG9 | 4-8 | 15.2 | 15.2 | 15 | 70 | 22/20 | ||
| PG-11SRLWH | PG-11SRLBH | PG11 | 5-10 | 18.6 | 18.6 | 15 | 78 | 24/22 | ||
| PG-13.5SRLWH | PG-13.5SRLBH | PG13.5 | 6-12 | 20.4 | 20.4 | 15 | 90 | 27/24 | ||
| PG-16SRLWH | PG-16SRLBH | PG16 | 10-14 | 22.5 | 22.5 | 15 | 100 | 30/27 | ||
| PG-21SRLWH | PG-21SRLBH | PG21 | 13-18 | 28.3 | 28.3 | 15 | 112 | 36/34 | ||
| NPT | 100PCS | |||||||||
| NPT3/8SRWH | NPT3/8SRBH | NPT3/8” | 4-8 | 16.5 | 16.5 | 13 | 70 | 22/20 | ||
| NPT1/2SRWH | NPT1/2SRBH | NPT1/2” | 6-12 | 21.3 | 21.3 | 13 | 92 | 27/24 | ||
| NPT3/4SRWH | NPT3/4SRBH | NPT3/4” | 13-18 | 26.6 | 26.6 | 15 | 114 | 34/34 | ||
