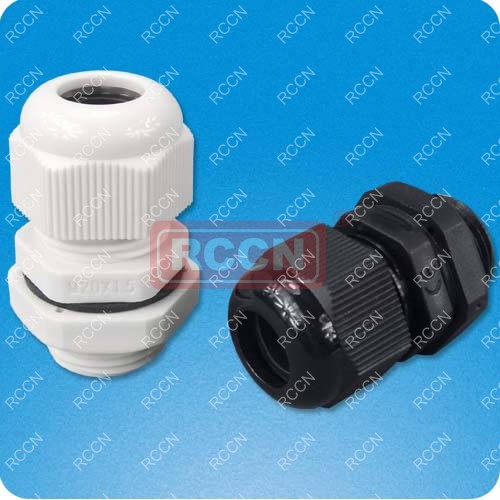

RCCN AG Nylon Cable Gland
*Time saving, cable can be easily once inserted into through the gland without dismantling the parts. *Suggested clearance hole for non-threaded mounting. *Suitable for fixing wires of machines, electrical applications, mechanical control boards/ boxes. *The gland can stand the temp. up to140oC (284°F) in short time. *Material: Polyamide 6.6, UL94 V2 Neoprene for seal insert, with nut *Color: Black, light grey |

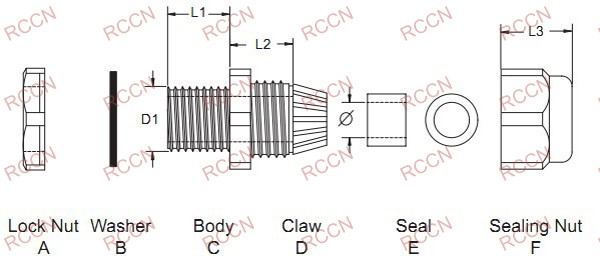

Thread length |
Item No. | Thread | CableRange ¢ |
Thread O.D. D1 |
Panel Mounting Hole |
Thread Length L1 |
Joint Length L2+L3 |
Spanner size A&F |
Std.Pkg. pcs |
|
White | Black | |||||||||
Short thread |
AG-12W | AG-12B | M12×1.5 | 3-6.5 | 12 | 12-12.3 | 8 | 22 | 18/16 | 100PCS |
AG-14W | AG-14B | M14×1.5 | 4-8 | 14 | 14-14.3 | 8 | 26 | 22/19 | ||
AG-16W | AG-16B | M16×1.5 | 4-8 | 16 | 16-16.3 | 8 | 26 | 22/19 | ||
AG-18W | AG-18B | M18×1.5 | 5-10 | 18 | 18-18.3 | 8 | 27 | 24/22 | ||
AG-20W | AG-20B | M20×1.5 | 6-12 | 20 | 20-20.3 | 9 | 28 | 27/24 | ||
AG-22W | AG-22B | M22×1.5 | 10-14 | 22 | 22-22.3 | 10 | 30 | 30/27 | ||
AG-24W | AG-24B | M24×1.5 | 12-15 | 24 | 24-24.4 | 10 | 30 | 30/27 | ||
AG-25W | AG-25B | M25×1.5 | 13-18 | 25 | 25-25.4 | 10 | 35 | 33/33 | ||
AG-27W | AG-27B | M27×1.5 | 13-18 | 27 | 27-27.4 | 10 | 35 | 33/33 | ||
AG-30W | AG-30B | M30×1.5 | 16-21 | 30 | 30-30.4 | 11 | 35 | 39/36 | ||
AG-32W | AG-32B | M32×1.5 | 16-21 | 32 | 32-32.4 | 11 | 35 | 39/36 | ||
AG-36W | AG-36B | M36×1.5 | 18-25 | 36 | 36-36.4 | 12 | 40 | 46/42 | ||
AG-40W | AG-40B | M40×1.5 | 22-32 | 40 | 40-40.4 | 14 | 48 | 50/54 | 20PCS | |
AG-50W | AG-50B | M50×1.5 | 32-38 | 50 | 50-50.4 | 14 | 49 | 63/61 | ||
AG-63W | AG-63B | M63×1.5 | 37-44 | 63 | 63-63.4 | 14 | 50 | 75/65 | ||
Long thread |
AG-12LW | AG-12LB | M12×1.5 | 3-6.5 | 12 | 12-12.3 | 15 | 22 | 18/16 | 100PCS |
AG-14LW | AG-14LB | M14×1.5 | 4-8 | 14 | 14-14.3 | 15 | 26 | 22/19 | ||
AG-16LW | AG-16LB | M16×1.5 | 4-8 | 16 | 16-16.3 | 15 | 26 | 22/19 | ||
AG-18LW | AG-18LB | M18×1.5 | 18 | 18 | 18-18.3 | 15 | 27 | 24/22 | ||
AG-20LW | AG-20LB | M20×1.5 | 6-12 | 20 | 20-20.3 | 15 | 28 | 27/24 | ||
AG-22LW | AG-22LB | M22×1.5 | 10-14 | 22 | 22-22.3 | 15 | 30 | 30/27 | ||
AG-24LW | AG-24LB | M24×1.5 | 12-15 | 24 | 24-24.4 | 15 | 30 | 30/27 | ||
AG-25LW | AG-25LB | M25×1.5 | 13-18 | 25 | 25-25.4 | 15 | 35 | 33/33 | ||
AG-27LW | AG-27LB | M27×1.5 | 13-18 | 27 | 27-27.4 | 15 | 35 | 33/33 | ||
AG-30LW | AG-30LB | M30×1.5 | 16-21 | 30 | 30-30.4 | 15 | 35 | 39/36 | ||
AG-32LW | AG-32LB | M32×1.5 | 16-21 | 32 | 32-32.4 | 15 | 35 | 39/36 | ||
AG-36LW | AG-36LB | M36×1.5 | 18-25 | 36 | 36-36.4 | 18 | 40 | 46/42 | ||
AG-40LW | AG-40LB | M40×1.5 | 22-32 | 40 | 40-40.4 | 18 | 48 | 50/54 | 20PCS | |
AG-50LW | AG-50LB | M50×1.5 | 32-38 | 50 | 50-50.4 | 18 | 49 | 63/61 | ||
AG-63LW | AG-63LB | M63×1.5 | 37-44 | 63 | 63-63.4 | 18 | 50 | 75/65 |
