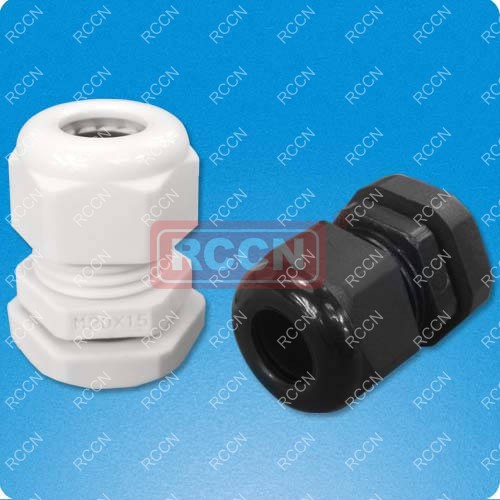

RCCN P-M Nylon Cable Gland

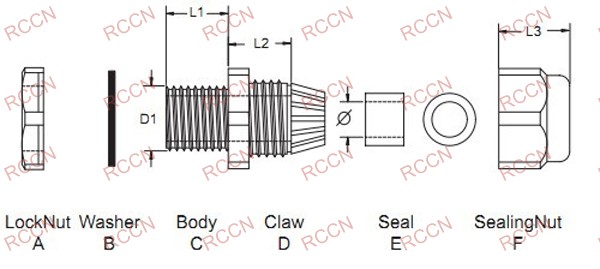

Thread:Metric/EN50262 Material:A.C.D.F are made of NYLON66, B,E are made of NBR Certificates: CE ,SGS,REACH。 Fireproof:UL94V-2。 Protection:IP67。 Colors:light gray,black Operate temperature:-40°C to 85°C。 |
Thread length |
Item No | Thread | CableRangeΦ | ThreadO.D.
D1 |
ThreadLength
L1 |
JointLength
L2+L3 |
Spannersize
F |
Std.PkgPcs | ||
White | Black | Gray | ||||||||
Standard thread |
P-M12W | P-M12B | P-M12G | M12*1.5 | 3-6.5 | 12 | 8 | 20 | 15 | 100PCS |
P-M16W | P-M16B | P-M16G | M16*1.5 | 4-8 | 16 | 8 | 22 | 19 | ||
P-M16DW | P-M16DB | P-M16DG | M16*1.5 | 5-10 | 16 | 8 | 25 | 22 | ||
P-M18W | P-M18B | P-M18G | M18*1.5 | 5-10 | 18 | 8 | 25 | 22 | ||
P-M20W | P-M20B | P-M20G | M20*1.5 | 6-12 | 20 | 9 | 26.5 | 24 | ||
P-M20DW | P-M20DB | P-M20DG | M20*1.5 | 10-14 | 20 | 9 | 28 | 27 | 50PCS | |
P-M22W | P-M22B | P-M22G | M22*1.5 | 10-14 | 22 | 10 | 28 | 27 | ||
P-M24W | P-M24B | P-M24G | M24*1.5 | 10-14 | 24 | 10 | 28 | 27 | ||
P-M25W | P-M25B | P-M25G | M25*1.5 | 13-18 | 25 | 11 | 31.5 | 33 | ||
P-M27W | P-M27B | P-M27G | M27*2.0 | 13-18 | 27 | 11 | 31.5 | 33 | ||
P-M30W | P-M30B | P-M30G | M30*2.0 | 13-18 | 30 | 11 | 31.5 | 33 | ||
P-M32W | P-M32B | P-M32G | M32*1.5 | 18-25 | 32 | 11 | 39 | 42 | 25PCS | |
P-M33W | P-M33B | P-M33G | M33*2.0 | 18-25 | 33 | 11 | 39 | 42 | ||
P-M36W | P-M36B | P-M36G | M36*2.0 | 18-25 | 36 | 11 | 39 | 42 | ||
P-M40W | P-M40B | P-M40G | M40*1.5 | 22-32 | 40 | 13 | 48.5 | 52 | 10PCS | |
P-M42W | P-M42B | P-M42G | M42*2.0 | 22-32 | 42 | 13 | 46.5 | 52 | ||
P-M48W | P-M48B | P-M48G | M48*2.0 | 22-32 | 48 | 13 | 48.5 | 52 | ||
P-M50W | P-M50B | P-M50G | M50*1.5 | 32-38 | 50 | 14 | 47.3 | 60 | ||
P-M56W | P-M56B | P-M56G | M56*2.0 | 32-38 | 56 | 14 | 47.3 | 60 | ||
P-M60W | P-M60B | P-M60G | M60*1.5 | 37-44 | 60 | 15 | 47 | 65 | ||
P-M63W | P-M63B | P-M63G | M63*1.5 | 37-44 | 63 | 15 | 47 | 65 | ||
P-M64W | P-M64B | P-M64G | M64*2.0 | 37-44 | 64 | 15 | 47 | 65 | ||
Long thread |
P-M12LW | P-M12LB | P-M12LG | M12*1.5 | 3-6.5 | 12 | 15 | 20 | 15 | 100PCS |
P-M16LW | P-M16LB | P-M16LG | M16*1.5 | 4-8 | 16 | 15 | 22 | 19 | ||
P-M18LW | P-M18LB | P-M18LG | M18*1.5 | 5-10 | 18 | 15 | 25 | 22 | ||
P-M20LW | P-M20LB | P-M20LG | M20*1.5 | 6-12 | 20 | 14 | 26.5 | 24 | ||
P-M22LW | P-M22LB | P-M22LG | M22*1.5 | 10-14 | 22 | 15 | 28 | 27 | ||
P-M25LW | P-M25LB | P-M25LG | M25*1.5 | 13-18 | 25 | 15 | 31.5 | 33 | 50PCS | |
P-M27LW | P-M27LB | P-M27LG | M27*2.0 | 13-18 | 27 | 15 | 31.5 | 33 | ||
P-M32LW | P-M32LB | P-M32LG | M32*1.5 | 18-25 | 32 | 15 | 39 | 42 | ||
P-M37LW | P-M37LB | P-M37LG | M37*2.0 | 18-25 | 37 | 15 | 39 | 42 |
