RCCN NGB Nylon Cable Gland

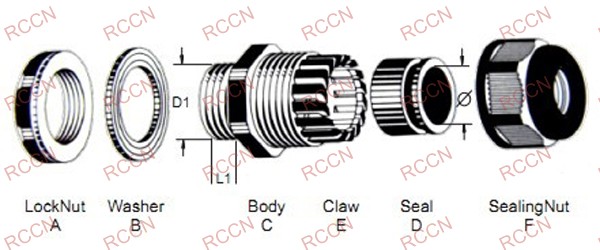

Thread:DIN STANDARD,NPT,G Material:A.C.E.F made of Rohs approved NYLON66,B.D made of NBR Certificate:UL/CUL:E348185,CE, SGS,REACH,EX Fireproof:UL94V-2。 Operate temperature:-50°C to 150°C。 Protect class:IP68。 Color:light gray(RAL7035),black(RAL9005) |
Item No. | Thread | CableRangeΦ | Thread
O.D. D1 |
PanelMounting
Hole |
ThreadLength
L1 |
Spanner
size A&F |
Std.Pkg
Pcs |
|
Black | White | |||||||
NPT | ||||||||
NGB3/8-10B | NGB3/8-10G | NPT3/8 | 5-10 | 16.6 | 16.6-16.9 | 10 | 62/62 | 50PCS |
NGB1/2-12B | NGB1/2-12G | NPT1/2 | 6-12.5 | 20.9 | 20.9-21.3 | 10 | 75/65 | |
NGB3/4-18B | NGB3/4-18G | NPT3/4 | 12.5-18 | 26.4 | 26.4-26.6 | 12 | 18/19 | 20PCS |
NGB1-25B | NGB1-25G | NPT1 | 17-25 | 33.2 | 33.2-33.4 | 15 | 22/22 | 10PCS |
NGB1-1/4-32B | NGB1-1/4-32G | NPT1-1/4 | 24-32 | 41.9 | 41.9-42.1 | 15 | 24/22 |
