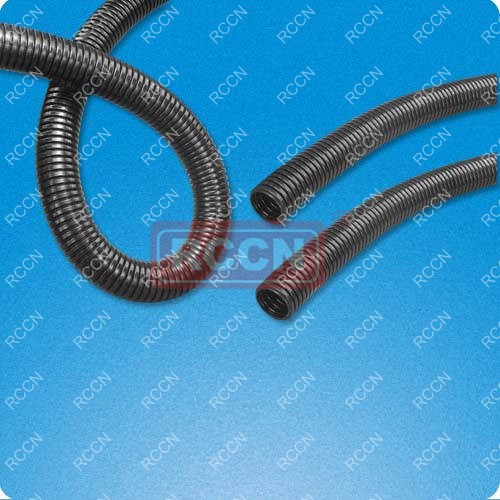

RCCN PA Polyamide Corrugated Tubing
Material:PA (Polyamide)
Work Temperature:-40℃ to125℃,150℃ in short time Color:black Certificates: CE,ROHS,REACH. Characheristics:good luster of exterior,stronger machinism loading, perfect flexibleFunctions:insulated,protect cables and wires Loading ability:uneasy to change shape,reshape speedly without hurt body Where to use:Equipment,machines,electricity sets, and so on How to use:insert cables or wires to RCCN flexible conduit Remarks: special packing length come with MOQ work temperature tested according to RCCN factory test machines |

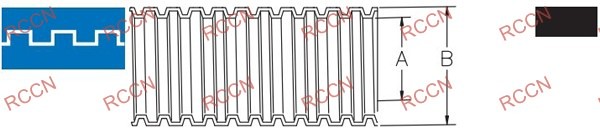

Item No . | Sizes | I.D.
A |
O.D.
B |
Packing
M |
|
Black | Gray | ||||
BG-07NB | BG-07NG | 1/4” | 6.5 | 10.0 | 100M |
BG-10NB | BG-10NG | 5/16” | 10.0 | 13.0 | 100M |
BG-12NB | BG-12NG | - | 12.0 | 15.8 | 100M |
BG-15NB | BG-15NG | 3/8” | 14.3 | 18.5 | 100M |
BG-17NB | BG-17NG | 1/2” | 17.0 | 21.2 | 100M |
BG-23NB | BG-23NG | 3/4” | 23.0 | 28.5 | 50M |
BG-29NB | BG-29NG | 1” | 29.0 | 34.5 | 50M |
BG-36NB | BG-36NG | 1 1/4” | 36.0 | 42.5 | 50M |
BG-48NB | BG-48NG | 2” | 48.0 | 54.5 | 25M |
BG-11NB | BG-11NG | - | 11.0 | 14.0 | 100M |
BG-20NB | BG-20NG | - | 20.0 | 25.0 | 50M |
BG-25NB | BG-25NG | - | 25.5 | 31.5 | 50M |
