RCCN brass cable gland EMC
EMC防电磁 |

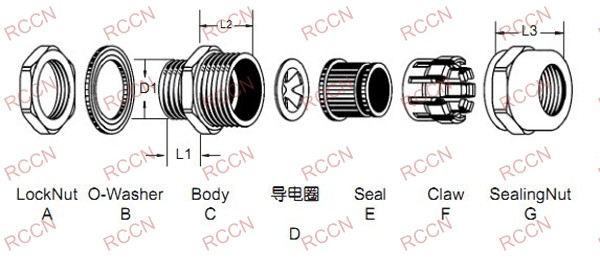

Thread:Metric Material:A.C.F are made of copper with nickel .D is made of copper,B.E are made of NBR Certificates:CE,EX Operate temperature:-50°C to 250°C Protection:IP68。 Product characterstics:Special design of part D and E,used with part F, can save your time, large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty, withstand impregnant like acid,alkali,alcohol,oil,grease,EMC cable gland looked like a normal gland, but with its metal intermediate contact disc which can contact the screen of shielded cable, helps to achieve an optimum low-resistance EMC bonding and to be attached to withstand electromagenetic interference. |
Item No | Thread | CableRangeΦ | ThreadO.D.D1 | PanelMountingHole | ThreadLengthL1 | JointLengthL2+L3 | SpannersizeA&F | Std.PkgPcs |
MGA12*1.5-6EMC | M12*1.5 | 3-6 | 12 | 12-12.3 | 6 | 19 | 16 | 100PCS |
MGA12*1.5-8EMC | M12*1.5 | 4-8 | 12 | 12-12.3 | 6 | 19 | 18 | |
MGA16*1.5-8EMC | M16*1.5 | 4-8 | 16 | 16-16.3 | 7 | 20 | 18 | |
MGA16*1.5-10EMC | M16*1.5 | 6-10 | 16 | 16-16.3 | 7 | 20 | 20 | |
MGA18*1.5-8EMC | M18*1.5 | 4-8 | 18 | 18-18.3 | 8 | 22 | 18 | |
MGA18*1.5-10EMC | M18*1.5 | 6-10 | 18 | 18-18.3 | 8 | 22 | 20 | |
MGA20*1.5-8EMC | M20*1.5 | 4-8 | 20 | 20-20.3 | 8 | 22 | 18 | |
MGA20*1.5-10EMC | M20*1.5 | 6-10 | 20 | 20-20.3 | 8 | 22 | 20 | |
MGA22*1.5-14EMC | M22*1.5 | 10-14 | 22 | 22-22.3 | 9 | 23 | 24 | 50PCS |
MGA24*1.5-14EMC | M24*1.5 | 10-14 | 24 | 24-24.3 | 10 | 23 | 24 | |
MGA25*1.5-14EMC | M25*1.5 | 10-14 | 25 | 25-25.4 | 10 | 23 | 24 | |
MGA25*1.5-18EMC | M25*1.5 | 13-18 | 25 | 25-25.4 | 10 | 23 | 30 | |
MGA27*2.0-18EMC | M27*2.0 | 13-18 | 27 | 27-27.4 | 11 | 28 | 30 | |
MGA30*2.0-18EMC | M30*2.0 | 13-18 | 30 | 30-30.4 | 11 | 28 | 30 | 10PCS |
MGA32*1.5-18EMC | M32*1.5 | 13-18 | 32 | 32-32.4 | 11 | 32 | 30 | |
MGA32*1.5-25EMC | M32*1.5 | 18-25 | 32 | 32-32.4 | 11 | 32 | 42 | |
MGA33*2.0-25EMC | M33*2.0 | 18-25 | 33 | 33-33.4 | 11 | 32 | 42 | |
MGA36*2.0-25EMC | M36*2.0 | 18-25 | 36 | 36-36.4 | 11 | 32 | 42 | |
MGA40*1.5-25EMC | M40*1.5 | 18-25 | 40 | 40-40.4 | 12 | 32 | 42 | |
MGA40*1.5-32EMC | M40*1.5 | 25-32 | 40 | 40-40.4 | 12 | 32 | 42 | |
MGA42*2.0-25EMC | M42*2.0 | 18-25 | 42 | 42-42.4 | 12 | 36 | 42 | |
MGA48*2.0-32EMC | M48*2.0 | 25-32 | 48 | 48-48.4 | 13 | 38 | 52 | 5PCS |
MGA50*1.5-32EMC | M50*1.5 | 25-32 | 50 | 50-50.4 | 13 | 38 | 60 | |
MGA50*1.5-40EMC | M50*1.5 | 30-40 | 50 | 50-50.4 | 13 | 38 | 60 | |
MGA54*2.0-40EMC | M54*2.0 | 30-40 | 54 | 54-54.4 | 14 | 38 | 60 | |
MGA56*2.0-40EMC | M56*2.0 | 30-40 | 56 | 56-56.4 | 14 | 38 | 60 | |
MGA60*2.0-54EMC | M60*2.0 | 44-54 | 60 | 60-60.4 | 14 | 38 | 77 | |
MGA63*1.5-54EMC | M63*1.5 | 44-54 | 63 | 63-63.4 | 14 | 38 | 77 |
