RCCN GA&NPTA Brass Cable Gland
 |

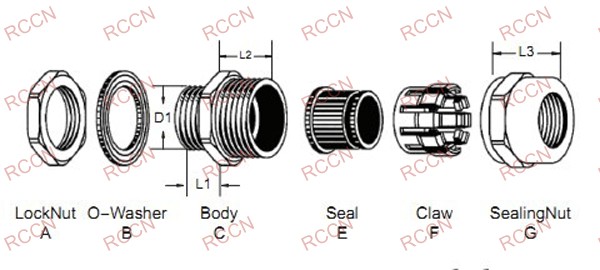

| Thread:G/PF，NPT Material:A.C.F are made of copper with nickel .B.E are made of NBR Certificates:CE,EX Operate temperature:-50°C to 250°C Protection:IP68。 Product characterstics:Special design of part D and E,used with part F, can save your time, large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty, withstand impregnant like acid,alkali,alcohol,oil,grease |
| Thread length |
Item No | Thread | CableRangeΦ | ThreadO.D.D1 | PanelMountingHole | ThreadLengthL1 | JointLengthL2+L3 | SpannersizeA&F | Std.PkgPcs |
| G Tube thread |
G1/4A-6 | G1/4” | 3-6 | 13.2 | 13.2-13.4 | 6 | 19 | 16 | 100PCS |
| G3/8A-8 | G3/8” | 4-8 | 16.5 | 16.5-17.1 | 7 | 20 | 18 | ||
| G1/2A-10 | G1/2” | 6-10 | 21.3 | 21.0-21.3 | 8 | 23 | 22 | ||
| G3/4A-18 | G3/4” | 13-16 | 26.6 | 26.5-26.6 | 11 | 28 | 30 | ||
| G1A-25 | G1” | 18-25 | 33.4 | 33.2-33.4 | 11 | 32 | 36 | ||
| G1-1/4A-32 | G1 1/4” | 25-32 | 42.1 | 41.9-42.1 | 12 | 36 | 48 | 10PCS | |
| G1-1/2A-40 | G1 1/2” | 30-40 | 47.8 | 47.8-48.0 | 13 | 38 | 52 | ||
| G2A-54 | G2” | 44-54 | 59.6 | 59.6-60.1 | 14 | 37 | 64 | ||
| NPT America thread |
NPT3/8A-6 | NPT3/8” | 4-8 | 16.5 | 16.5-17.1 | 7 | 20 | 18 | 10PCS |
| NPT1/2A-10 | NPT1/2” | 6-10 | 21.3 | 21.0-21.3 | 8 | 23 | 22 | ||
| NPT3/4A-18 | NPT3/4” | 13-18 | 26.6 | 26.5-26.6 | 11 | 28 | 30 | ||
| NPT1A-25 | NPT1” | 18-25 | 33.4 | 33.2-33.4 | 11 | 32 | 36 | ||
| NPT1-1/4A-32 | NPT1 1/4” | 25-32 | 42.1 | 41.9-42.1 | 12 | 36 | 48 | 10PCS | |
| NPT1-1/2A-40 | NPT1 1/2” | 30-40 | 47.8 | 47.8-48.0 | 13 | 38 | 52 | ||
| NPT2A-54 | NPT2” | 44-54 | 59.6 | 59.6-60.1 | 14 | 37 | 64 |
