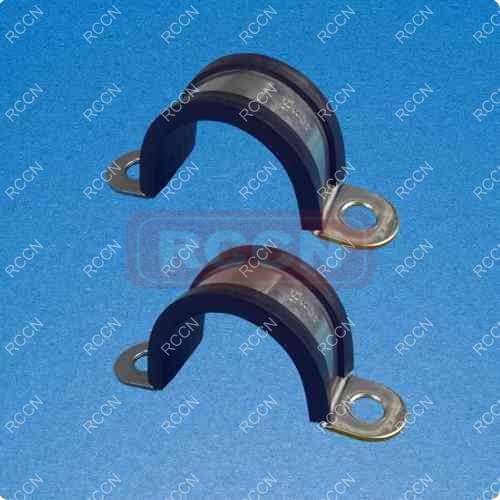

RCCN SKU Tubing Clamp
Material:Steel coated
with rubber Work temperature:-40°C to 250°C。 Utility:fix conduits or cables Come with MOQ |

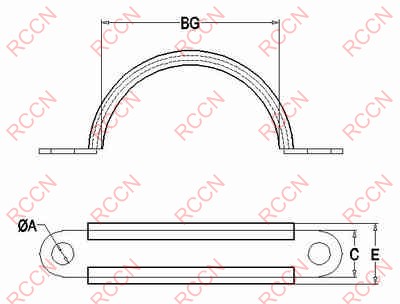

Item No. | BG/ | A | E | C | F | PACK |
SKU/M4
|
||||||
SKU BG-07(M4) | BG-07/10mm | M4 | 14 | 9 | 0.5 | 50PCS |
SKU BG-10(M4) | BG-10/13mm | M4 | 14 | 9 | 0.5 | |
SKU BG-12(M4) | BG-12/15.8mm | M4 | 14 | 9 | 0.5 | |
SKU BG-15(M4) | BG-15/18.5mm | M4 | 14 | 9 | 0.5 | |
SKU BG-17(M4) | BG-17/21.2mm | M4 | 14 | 9 | 0.5 | |
SKU BG-20(M4) | BG-20/25mm | M4 | 14 | 9 | 0.5 | 25PCS |
SKU BG-23(M4) | BG-23/28.5mm | M4 | 14 | 9 | 0.5 | |
SKU BG-25(M4) | BG-25/30.0mm | M4 | 14 | 9 | 0.5 | |
SKU BG-29(M4) | BG-29/34.5mm | M4 | 14 | 9 | 0.5 | |
SKU BG-36(M4) | BG-36/42.5mm | M4 | 14 | 9 | 0.5 | |
SKU BG-48(M4) | BG-48/54.5mm | M4 | 14 | 9 | 0.5 | |
SKU/M6
|
||||||
SKU BG-07(M6) | BG-07/10mm | M6 | 15 | 12 | 0.5 | 50PCS |
SKU BG-10(M6) | BG-10/13mm | M6 | 15 | 12 | 0.5 | |
SKU BG-12(M6) | BG-12/15.8mm | M6 | 15 | 12 | 0.5 | |
SKU BG-15(M6) | BG-15/18.5mm | M6 | 15 | 12 | 0.5 | |
SKU BG-17(M6) | BG-17/21.2mm | M6 | 15 | 12 | 0.5 | |
SKU BG-20(M6) | BG-20/25.0mm | M6 | 15 | 12 | 0.5 | 25PCS |
SKU BG-23(M6) | BG-23/28.5mm | M6 | 15 | 12 | 0.5 | |
SKU BG-25(M6) | BG-25/30.0mm | M6 | 15 | 12 | 0.5 | |
SKU BG-29(M6) | BG-29/34.5mm | M6 | 15 | 12 | 0.5 | |
SKU BG-36(M6) | BG-36/42.5mm | M6 | 15 | 12 | 0.5 | |
SKU BG-48(M6) | BG-48/54.5mm | M6 | 15 | 12 | 0.5 | |
SKU/M6D
|
||||||
SKU BG-07(M6) | BG-07/10mm | M6 | 24.5 | 20 | 1.0 | 50PCS |
SKU BG-10(M6) | BG-10/13mm | M6 | 24.5 | 20 | 1.0 | |
SKU BG-12(M6) | BG-12/15.8mm | M6 | 24.5 | 20 | 1.0 | |
SKU BG-15(M6) | BG-15/18.5mm | M6 | 24.5 | 20 | 1.0 | |
SKU BG-17(M6) | BG-17/21.2mm | M6 | 24.5 | 20 | 1.0 | |
SKU BG-20(M6) | BG-20/25.0mm | M6 | 24.5 | 20 | 1.0 | 25PCS |
SKU BG-23(M6) | BG-23/28.5mm | M6 | 24.5 | 20 | 1.0 | |
SKU BG-25(M6) | BG-25/30.0mm | M6 | 24.5 | 20 | 1.0 | |
SKU BG-29(M6) | BG-29/34.5mm | M6 | 24.5 | 20 | 1.0 | |
SKU BG-36(M6) | BG-36/42.5mm | M6 | 24.5 | 20 | 1.0 | |
SKU BG-48(M6) | BG-48/54.5mm | M6 | 24.5 | 20 | 1.0 | |
SKU/M8
|
||||||
SKU BG-07(M8) | BG-07/10mm | M8 | 24.5 | 20 | 1.0 | 50PCS |
SKU BG-10(M8) | BG-10/13mm | M8 | 24.5 | 20 | 1.0 | |
SKU BG-12(M8) | BG-12/15.8mm | M8 | 24.5 | 20 | 1.0 | |
SKU BG-15(M8) | BG-15/18.5mm | M8 | 24.5 | 20 | 1.0 | |
SKU BG-17(M8) | BG-17/21.2mm | M8 | 24.5 | 20 | 1.0 | |
SKU BG-20(M8) | BG-20/25.0mm | M8 | 24.5 | 20 | 1.0 | 25PCS |
SKU BG-23(M8) | BG-23/28.5mm | M8 | 24.5 | 20 | 1.0 | |
SKU BG-25(M8) | BG-25/30.0mm | M8 | 24.5 | 20 | 1.0 | |
SKU BG-29(M8) | BG-29/34.5mm | M8 | 24.5 | 20 | 1.0 | |
SKU BG-36(M8) | BG-36/42.5mm | M8 | 24.5 | 20 | 1.0 | |
SKU BG-48(M8) | BG-48/54..5mm | M8 | 24.5 | 20 | 1.0 | |
SKU/M10
|
||||||
SKU BG-07(M10) | BG-07/10mm | M10 | 30 | 25 | 1.0 | 50PCS |
SKU BG-10(M10) | BG-10/13mm | M10 | 30 | 25 | 1.0 | |
SKU BG-12(M10) | BG-12/15.8mm | M10 | 30 | 25 | 1.0 | |
SKU BG-15(M10) | BG-15/18.5mm | M10 | 30 | 25 | 1.0 | |
SKU BG-17(M10) | BG-17/21.2mm | M10 | 30 | 25 | 1.0 | |
SKU BG-20(M10) | BG-20/25.0mm | M10 | 30 | 25 | 1.0 | 25PCS |
SKU BG-23(M10) | BG-23/28.5mm | M10 | 30 | 25 | 1.0 | |
SKU BG-25(M10) | BG-25/30.0mm | M10 | 30 | 25 | 1.0 | |
SKU BG-29(M10) | BG-29/34.5mm | M10 | 30 | 25 | 1.0 | |
SKU BG-36(M10) | BG-36/42.5mm | M10 | 30 | 25 | 1.0 | |
SKU BG-48(M10) | BG-48/54.5mm | M10 | 30 | 25 | 1.0 | |
SKU BG-70(M10) | BG-67/70.0mm | M10 | 30 | 25 | 1.0 | 5PCS |
