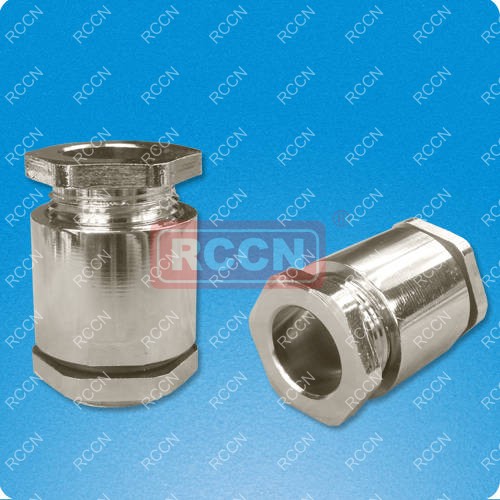

RCCN brass cable gland type-jis
Thread:JSI F8801-2002 PF Material:A.C.F are made of zinc metel coated nickel.D is ande of metal.B.E are made of NBR Protect:IP54。 JIS is longer than PJ,JIS outer dia. is 2mm and thcker,JIS is used instead of Japan’s gland |

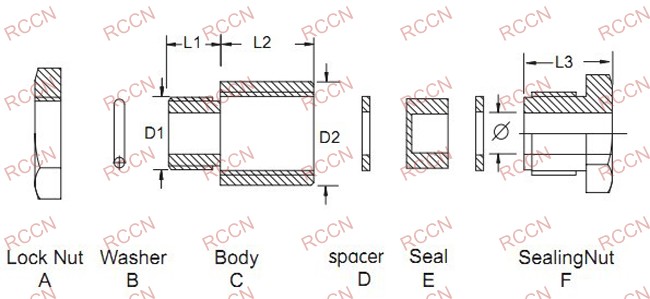

Item No | Thread | CableRangeΦ | ThreadO.D.
D1 |
PanelMounting
Hole |
ThreadLength
L1 |
JointLength
L2+L3 |
Spannersize
A&F |
Std.PkgPcs |
JIS-G3/8-7 | G3/8” | 5-7 | 16.5 | 16.5-17.1 | 11 | 45 | 22 | 50PCS |
JIS-G3/8-8 | G3/8” | 6-8 | 16.5 | 16.5-17.1 | 11 | 45 | 22 | |
JIS-G1/2-9 | G1/2” | 7-9 | 21.3 | 21.3-21.5 | 11 | 50 | 28 | |
JIS-G1/2-10 | G1/2” | 8-10 | 21.3 | 21.3-21.5 | 11 | 50 | 28 | |
JIS-G1/2-11 | G1/2” | 9-11 | 21.3 | 21.3-21.5 | 11 | 50 | 28 | |
JIS-G3/4-12 | G3/4” | 9-12 | 26.6 | 26.6-26.9 | 11 | 53 | 34 | |
JIS-G3/4-13 | G3/4” | 10-13 | 26.6 | 26.6-26.9 | 11 | 53 | 34 | 10PCS |
JIS-G3/4-15 | G3/4” | 12-15 | 26.6 | 26.6-26.9 | 11 | 53 | 34 | |
JIS-G1-16 | G1” | 13-16 | 33.4 | 33.4-33.8 | 11 | 60 | 42 | |
JIS-G1-18 | G1” | 15-18 | 33.4 | 33.4-33.8 | 11 | 60 | 42 | |
JIS-G1-20 | G1” | 16-20 | 33.4 | 33.4-33.8 | 11 | 60 | 42 | |
JIS-G1-1/4-22 | G1-1/4” | 18-22 | 42.1 | 42.1-42.5 | 12 | 60 | 50 | |
JIS-G1-1/4-24 | G1-1/4” | 20-24 | 42.1 | 42.1-42.5 | 12 | 65 | 50 | |
JIS-G1-1/4-26 | G1-1/4” | 22-26 | 42.1 | 42.1-42.5 | 12 | 65 | 50 | 5PCS |
JIS-G1-1/2-28 | G1-1/2” | 24-28 | 47.8 | 47.8-48.4 | 12 | 70 | 56 | |
JIS-G1-1/2-30 | G1-1/2” | 26-30 | 47.8 | 47.8-48.4 | 12 | 70 | 56 | |
JIS-G1-1/2-32 | G1-1/2” | 28-32 | 47.8 | 47.8-48.4 | 12 | 70 | 56 | 1PCS |
JIS-G1-1/2-34 | G1-1/2” | 30-34 | 47.8 | 47.8-48.4 | 12 | 70 | 56 | |
JIS-G2-36 | G2” | 32-36 | 59.6 | 59.6-60.1 | 12 | 85 | 70 | |
JIS-G2-38 | G2” | 33-38 | 59.6 | 59.6-60.1 | 12 | 85 | 70 | |
JIS-G2-40 | G2” | 35-40 | 59.6 | 59.6-60.1 | 12 | 85 | 70 | |
JIS-G2-42 | G2” | 36-42 | 59.6 | 59.6-60.1 | 12 | 85 | 70 | |
大规格JIS | 1PCS | |||||||
JIS-G2-1/2–46 | G2-1/2” | 40-46 | 75.1 | 75.1-75.5 | 12 | 87 | 86 | |
JIS-G2-1/2–48 | G2-1/2” | 42-48 | 75.1 | 75.1-75.5 | 12 | 87 | 86 | |
JIS-G2-1/2–50 | G2-1/2” | 44-50 | 75.1 | 75.1-75.5 | 12 | 87 | 86 | |
JIS-G2-1/2–52 | G2-1/2” | 46-52 | 75.1 | 75.1-75.5 | 12 | 87 | 86 | |
JIS-G2-1/2–54 | G2-1/2” | 48-54 | 75.1 | 75.1-75.5 | 12 | 87 | 86 | |
JIS-G2-1/2–56 | G2-1/2” | 50-56 | 75.1 | 75.1-75.5 | 12 | 87 | 86 | |
JIS-G3-58 | G3” | 52-58 | 87.8 | 87.8-88.2 | 14 | 100 | 100 | |
JIS-G3-60 | G3” | 54-60 | 87.8 | 87.8-88.2 | 14 | 100 | 100 | |
JIS-G3-62 | G3” | 56-62 | 87.8 | 87.8-88.2 | 14 | 100 | 100 | |
JIS-G3-64 | G3” | 58-64 | 87.8 | 87.8-88.2 | 14 | 100 | 100 |
