RCCN PJ Cable Gland




Thread:GB/T 3667.1-1995 metric thread
Material:A.C.F are made of zinc metel coated nickel.D is ande of metal.B.E are made of NBR
Protect:IP54
PJ is shorter than JIS,outer dia. is less than 2mm,PJ main used in ships and electrics

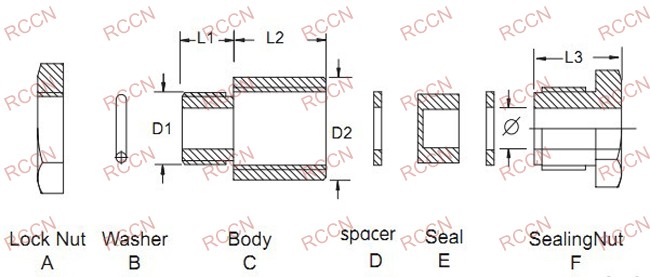

Thread
length		 Item No  Thread  CableRangeΦ  ThreadO.D.

D1

  PanelMounting

Hole

  ThreadLength

L1

  JointLength

L2+L3

  Spannersize

A&F

  Std.PkgPcs
English
thread		 PJ-G3/8 G3/8” 5-7 16.5 16.5-17.1 10 32 22 50PCS
PJ-G1/2 G1.2” 6-12 21.3 21.0-21.3 11 35 27
PJ-G1/2 G1/2” 11-15 21.3 21.0-21.3 11 40 32
PJ-G3/4 G3/4” 14-18 26.6 26.5-26.6 14 42 36
PJ-G1 G1” 17-23 33.4 33.2-3.4 14 44 41
PJ-G1-1/4 G1 1/4” 22-27 42.1 41.9-42.1 14 46 46 20PCS
PJ-G1-1/4 G1 1/4” 26-33 42.1 41.9-42.1 14 49 50
PJ-G1-1/2 G1 1/2” 32-41 47.8 47.8-48.0 14 54 60 5PCS
PJ-G2 G2” 40-49 59.6 59.6-60.1 20 56 70
Thread
length		 PJ-M14*1.0 M14*1.0 5-7 14 14-14.3 10 32 22 50PCS
PJ-M18*1.0 M18*1.0 6-12 18 18-18.3 11 35 27
PJ-M22*1.0 M22*1.0 11-15 22 22-22.3 11 40 32
PJ-M27*1.5 M27*1.5 14-18 27 27-27..4 14 42 36 20PCS
PJ-M30*1.5 M30*1.5 17-23 30 30-30.4 14 44 41
PJ-M36*2.0 M36*2.0 22-27 36 36-36.4 14 46 46
PJ-M42*2.0 M42*2.0 26-33 42 42-42.4 14 49 50 5PCS
PJ-M52*2.0 M52*2.0 32-41 52 52-52.4 14 54 60
PJ-M58*3.0 M58*3.0 40-49 58 58-58.4 20 56 70
PJ-M68*3.0 M68*3.0 48-57 68 68-68.4 20 56 80
Germany
thread		 PJ-PG9 PG9 5-7 15.2 15.2-15.8 10 32 22 50PCS
PJ-PG11 PG11 6-12 18.6 18.6-18.9 11 35 27
PJ-PG16 PG16 11-15 22.5 22.5-22.8 11 40 32 20PCS
PJ-PG21 PG21 14-18 28.3 28.3-28.7 14 42 36
PJ-PG29 PG29 17-23 37.0 37.0-37.4 14 44 41 5PCS
PJ-PG29 PG29 22-27 37.0 37.0-37.4 14 46 46
PJ-PG36 PG36 26-33 37.0 37.0-37.4 14 49 50
PJ-PG42 PG42 32-41 54.0 54.0-54.4 14 54 60
PJ-PG48 PG48 40-49 59.3 59.3-59.7 20 56 70
