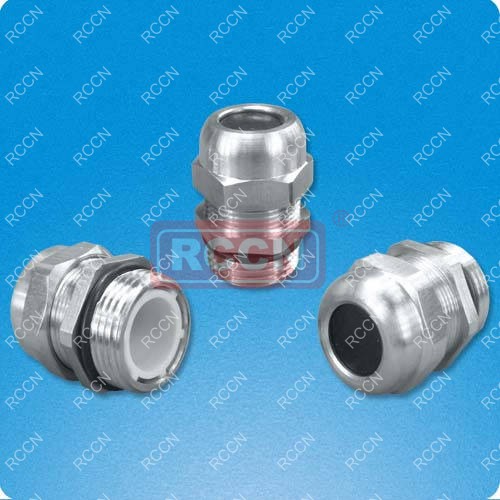

RCCN GS&NPTS Cable Gland





Thread:G/PF，NPT

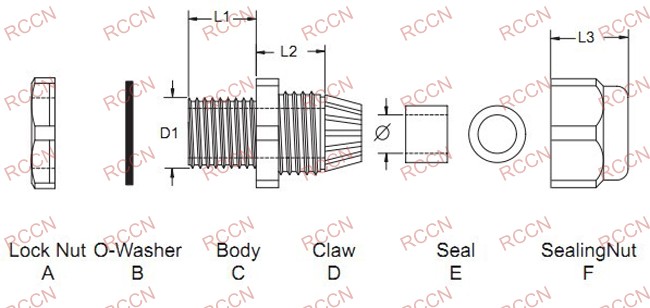

Mater ial :A.C.F are made of stainess steel .D is made of insulated plast ic .B.E are made of NBR
Cer t i f icates:CE,EX
Protect ion: IP67。
Product characterst ics:Special design of par t D and E,used wi th par t F, can save your t ime,
large spread of cable seal ing,good re- tensi le,waterproof ,ashproof , re-sal ty,
Length added is avai lable, such as：PGS-13.5/L=15
Notes: lock nut is sold separatedly,O- r ing is included
Thread
length		  Item No Thread CableRangeΦ ThreadO.D.D1 PanelMountingHole ThreadLengthL1 JointLengthL2+L3 SpannersizeF Std.PkgPcs
G
tube
thread		 GS1/4 G1/4” 3-6 13.2 13.2-13.4 6 19 16 100PCS
GS3/8 G3/8” 4-8 16.5 16.5-17.1 7 20 18
GS1/2 G1/2” 8-12 21.3 21.0-21.3 8 23 22
GS3/4 G3/4” 13-18 26.6 26.5-26.6 11 28 30 20PCS
GS1 G1” 15-22 33.4 33.2-33.4 11 32 36
GS1 1/4 G1 1/4” 22-28 42.1 41.9-42.1 12 36 48 10PCS
GS1 1/2 G1 1/2” 26-32 47.8 47.8-48.0 13 38 52
GS2 G2” 37-44 59.6 59.6-60.1 14 37 64
NPT
America
thread		 NPTS3/8” NPT3/8” 4-8 16.5 16.5-17.1 7 20 18 100PCS
NPTS1/2” NPT1/2” 8-12 21.3 21.0-21/3 8 23 22
NPTS3/4” NPT3/4” 13-18 26.6 26.5-26.6 11 28 30
NPTS1” NPT1” 15-22 33.4 33.2-33.4 11 32 36 20PCS
NPTS1 1/4” NPT1 1/4” 22-28 42.1 41.9-42.1 12 36 48
NPTS1 1/2” NPT1 1/2” 26-32 47.8 47.8-48.0 13 38 52 10PCS
NPTS2” NPT2” 37-44 59.6 59.6-60.1 14 37 64
