RCCN MGAS Stainless Steel Cable Gland

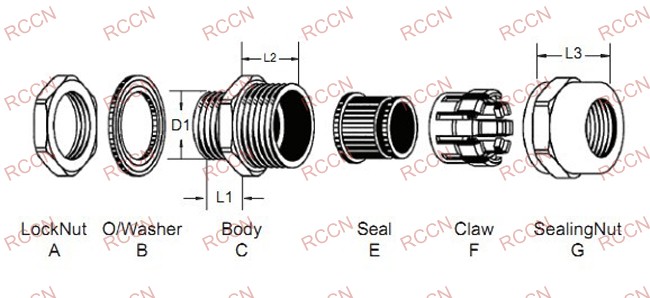

Thread:Metric Material:A.C.F are made of copper with nickel .D is made of PA,B.E are made of NBR Certificates:CE,EX Operate temperature:-50°C to 250°C Protection:IP68。 Product characterstics:Special design of part D and E,used with part F, can save your time, large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty, withstand impregnant like acid,alkali,alcohol,oil,grease Length added is available, such as :MGAS20×1.5-10/L=15 Notes:lock nut is sold separatedly,O-ring is included |
Item No | Thread | CableRangeΦ | ThreadO.D.
D1 |
PanelMounting
Hole |
ThreadLength
L1 |
JointLength
L2+L3 |
Spannersize
A&F |
Std.PkgPcs |
MGAS12*1.5-6 | M12*1.5 | 3-6 | 12 | 12-12.3 | 6 | 19 | 16 | 100PCS |
MGAS12*1.5-8 | M12*1.5 | 4-8 | 12 | 12-12.3 | 6 | 19 | 18 | |
MGAS16*1.5-8 | M16*1.5 | 4-8 | 16 | 16-16.3 | 7 | 20 | 18 | |
MGAS16*1.5-10 | M16*1.5 | 6-10 | 16 | 16-16.3 | 7 | 20 | 20 | |
MGAS18*1.5-8 | M18*1.5 | 4-8 | 18 | 18-18.3 | 8 | 22 | 18 | |
MGAS18*1.5-10 | M18*1.5 | 6-10 | 18 | 18-18.3 | 8 | 22 | 20 | |
MGAS20*1.5-8 | M20*1.5 | 4-8 | 20 | 20-20.3 | 8 | 22 | 18 | 50PCS |
MGAS20*1.5-10 | M20*1.5 | 6-10 | 20 | 20-20.3 | 8 | 22 | 20 | |
MGAS22*1.5-14 | M22*1.5 | 10-14 | 22 | 22-22.3 | 9 | 23 | 24 | |
MGAS24*1.5-14 | M24*1.5 | 10-14 | 24 | 24-24.3 | 10 | 23 | 24 | |
MGAS25*1.5-14 | M25*1.5 | 10-14 | 25 | 25-25.4 | 10 | 23 | 24 | |
MGAS25*1.5-18 | M25*1.5 | 13-18 | 25 | 25-25.4 | 10 | 23 | 30 | |
MGAS27*2.0-18 | M27*2.0 | 13-18 | 27 | 27-27.4 | 11 | 28 | 30 | |
MGAS30*2.0-18 | M30*2.0 | 13-18 | 30 | 30-30.4 | 11 | 28 | 30 | 10PCS |
MGAS32*1.5-18 | M32*1.5 | 13-18 | 32 | 32-32.4 | 11 | 32 | 30 | |
MGAS32*1.5-25 | M32*1.5 | 18-25 | 32 | 32-32.4 | 11 | 32 | 42 | |
MGAS33*2.0-25 | M33*2.0 | 18-25 | 33 | 33-33.4 | 11 | 32 | 42 | 5PCS |
MGAS36*2.0-25 | M36*2.0 | 18-25 | 36 | 36-36.4 | 11 | 32 | 42 | |
MGAS40*1.5-25 | M40*1.5 | 18-25 | 40 | 40-40.4 | 12 | 32 | 42 | |
MGAS40*1.5-32 | M40*1.5 | 25-32 | 40 | 40-40.4 | 12 | 32 | 42 | |
MGAS42*2.0-25 | M42*2.0 | 18-25 | 42 | 42-42.4 | 12 | 36 | 42 | |
MGAS48*2.0-32 | M48*2.0 | 25-32 | 48 | 48-48.4 | 13 | 38 | 52 | |
MGAS50*1.5-32 | M50*1.5 | 25-32 | 50 | 50-50.4 | 13 | 38 | 60 | |
MGAS50*1.5-40 | M50*1.5 | 30-40 | 50 | 50-50.4 | 13 | 38 | 60 | |
MGAS54*2.0-40 | M54*2.0 | 30-40 | 54 | 54-54.4 | 14 | 38 | 60 | |
MGAS56*2.0-40 | M56*2.0 | 30-40 | 56 | 56-56.4 | 14 | 38 | 60 | |
MGAS60*2.0-54 | M60*2.0 | 44-54 | 60 | 60-60.4 | 14 | 38 | 77 | |
MGAS63*1.5-54 | M63*1.5 | 44-54 | 63 | 63-63.4 | 14 | 38 | 77 |
