RCCN M-L Brass Cable Gland

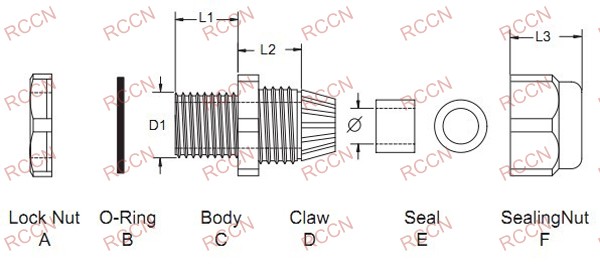

Thread:Metric。 Material :A.C.F are made of brass.D is made of insulated rubber.B.E are made of rubber NBR。 Protect grade is up to IP67 in the sui table use way Operate temperature:-40°C to 100°C Product characterst ics:Special design of part D and E,used wi th part F, can save your t ime, large spread of cable seal ing,good re-tensi le,waterproof ,ashproof ,re-sal ty, wi thstand impregnant l ike acid,alkal i ,alcohol ,oi l ,grease More choice:Length added gland,many other sizes of seal ,glands made of rubber EPDM for outdoor use |
Item No | Thread | CableRangeΦ | ThreadO.D.D1 | PanelMountingHole | ThreadLengthL1 | JointLengthL2+L3 | SpannersizeA&F | Std.PkgPcs |
M12*1.5L | M12*1.5 | 3-6 | 12 | 12-12.3 | 10 | 19 | 16 | 100PCS |
M16*1.5L | M16*1.5 | 4-8 | 16 | 16-16.3 | 10 | 20 | 18 | |
M18*1.5L | M18*1.5 | 6-10 | 18 | 18-18.3 | 10 | 22 | 20 | |
M20*1.5L | M20*1.5 | 8-12 | 20 | 20-20.3 | 10 | 23 | 22 | |
M22*1.5L | M22*1.5 | 10-14 | 22 | 22-22.3 | 10 | 23 | 24 | |
M24*1.5L | M24*1.5 | 10-14 | 24 | 24-24.3 | 12 | 23 | 27 | |
M25*1.5L | M25*1.5 | 11-16 | 25 | 25-25.4 | 12 | 23 | 28 | 50PCS |
M27*2.0L | M27*2.0 | 13-18 | 27 | 27-27.4 | 12 | 28 | 30 | |
M30*2.0L | M30*2.0 | 14-20 | 30 | 30-30.4 | 12 | 28 | 32 | |
M32*1.5L | M32*1.5 | 15-22 | 32 | 32-32.4 | 12 | 32 | 36 | |
M33*2.0L | M33*2.0 | 15-22 | 33 | 33-33.4 | 12 | 32 | 36 | |
M36*2.0L | M36*2.0 | 18-25 | 36 | 36-36.4 | 12 | 32 | 42 | |
M40*1.5L | M40*1.5 | 22-28 | 40 | 40-40.4 | 15 | 32 | 45 | |
M42*2.0L | M42*2.0 | 24-30 | 42 | 42-42.4 | 15 | 36 | 48 | 10PCS |
M48*2.0L | M48*2.0 | 25-32 | 48 | 48-48.4 | 15 | 38 | 52 | |
M50*1.5L | M50*1.5 | 28-36 | 50 | 50-50.4 | 15 | 38 | 56 | |
M54*2.0L | M54*2.0 | 32-38 | 54 | 54-54.4 | 16 | 38 | 60 | 5PCS |
M56*2.0L | M56*2.0 | 32-38 | 56 | 56-56.4 | 16 | 38 | 60 | |
M60*2.0L | M60*2.0 | 37-44 | 60 | 60-60.4 | 16 | 38 | 64 | |
M63*1.5L | M63*1.5 | 37-44 | 63 | 63-63.4 | 18 | 38 | 70 | |
M64*2.0L | M64*2.0 | 37-44 | 64 | 64-64.4 | 18 | 38 | 68 |
