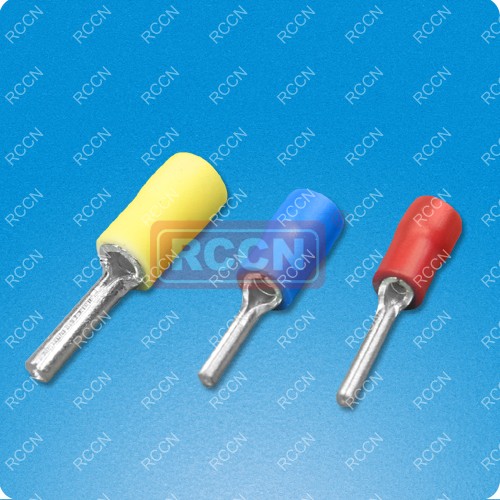

RCCN PINF Insulated Terminals
Note:installed by crimp tool YYT-1 |
Insulated square:0.5~1.5mm2(AWG22~16) Max. cunrrent:lmax=19A
Item No
|
Dimension
|
Color
|
||||
PVC材质 | 尼龙材质 | Fφ | L | H | Dφ |
red
|
PINF1.25-9 | PINF1.25-9N | 1.9 | 19.0 | 11.0 | 4.0 | |
PINF1.25-10 | PINF1.25-10N | 1.9 | 20.0 | 11.0 | 4.0 | |
PINF1.25-12 | PINF1.25-12N | 1.9 | 22.0 | 11.0 | 4.0 | |
PINF1.25-13 | PINF1.25-13N | 1.9 | 23.0 | 11.0 | 4.0 | |
PINF1.25-18 | PINF1.25-18N | 1.9 | 28.0 | 11.0 | 4.0 |
Insulated square:1.5~2.5mm2(AWG16~14) Max. cunrrent:lmax=27A
Item No
|
Dimension |
Color
|
||||
Fφ | L | H | Dφ | |||
mm | mm | mm | mm | |||
PVC材质 |
尼龙材质
|
10.0 | 4.9 |
blue
|
||
PINF 2-9 | PINF 2-9N | 1.9 | 19.0 | |||
PINF 2-10 | PINF 2-10N | 1.9 | 20.0 | |||
PINF 2-12 | PINF 2-12N | 1.9 | 22.0 | |||
PINF 2-13 | PINF 2-13N | 1.9 | 23.0 | |||
PINF 2-18 | PINF 2-18N | 1.9 | 28.0 |
Insulated square:2.5~4mm2(AWG14~12)Max. cunrrent:lmax=37A
Item No |
DIMENSION | color | ||||
PVC材质 | 尼龙材质 | Fφ | L | H | Dφ | Black |
PINF3.5-10 | PINF3.5-10N | 2.8 | 20.5 | 13.5 | 6.4 | |
PINF3.5-13 | PINF3.5-13N | 2.8 | 25.5 | 13.5 | 6.4 |
Insulated square:4~6mm2(AWG12~10) Max. cunrrent:lmax=48A
Item No. |
DIMENSION | color | ||||
PVC材质 | 尼龙材质 | Fφ | L | H | Dφ | Yellow |
PINF5.5-13 | PINF5.5-13N | 2.8 | 25.5 | 13.5 | 6.4 |
