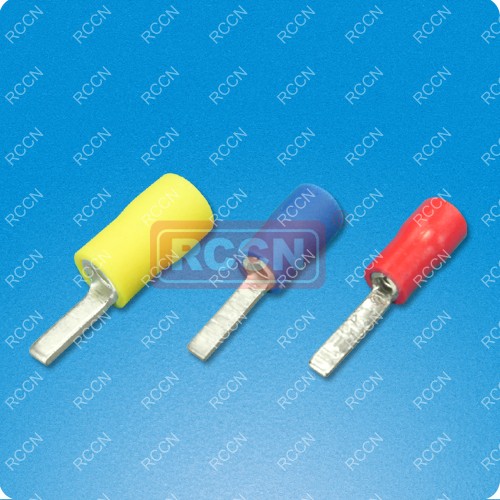

RCCN DBF Insulated Terminals
  |
|
Note:installed by crimp tool YYT-1 |
Insulated square：0.5～1.5mm2(AWG22～16) Max. cunrrent：lmax=19A
|
Item No
|
Dimension | ||||
| PVC材质 | 尼龙材质 | Fφ | L | H | Dφ |
| DBF 1.25-10 | DBF 1.25-10N | 2.3 | 20.0 | 11.0 | 4.0 |
| DBF 1.25-11 | DBF 1.25-11N | 3.0 | 21.0 | 11.0 | 4.0 |
| DBF 1.25-14 | DBF 1.25-14N | 3.0 | 24.0 | 11.0 | 4.0 |
| DBF 1.25-18 | DBF 1.25-18N | 2.2 | 28.0 | 11.0 | 4.0 |
Insulated square：1.5～2.5mm2(AWG16～14) Max. cunrrent：lmax=27A
|
Item No |
Dimension | ||||
| PVC材质 | 尼龙材质 | Fφ | L | H | Dφ |
| DBF2-10 | DBF2-10N | 2.4 | 19.0 | 11.0 | 4.5 |
| DBF2-14 | DBF2-14N | 2.4 | 24.0 | 11.0 | 4.5 |
| DBF2-18 | DBF2-18N | 2.4 | 28.0 | 11.0 | 4.5 |
Insulated square：4～6mm2(AWG12～10) Max. cunrrent：lmax=48A
|
Item No |
Dimension | ||||
| PVC材质 | 尼龙材质 | Fφ | L | H | Dφ |
| DBF5.5-10 | DBF5.5-10N | 2.8 | 22.5 | 13.5 | 6.4 |
| DBF5.5-14 | DBF5.5-14N | 4.5 | 26.5 | 13.5 | 6.4 |
| DBF5.5-18 | DBF5.5-18N | 4.5 | 30.5 | 13.5 | 6.4 |
