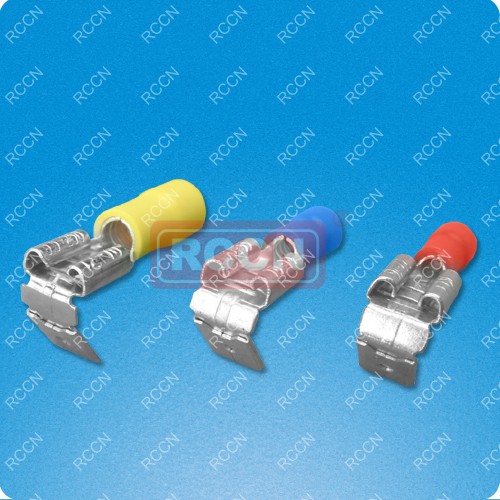

RCCN MF Insulated Peggy Back Terminals
Note:installed by crimp tool YYT-1 |
Insulated square:0.5~1.5mm2(AWG22~16) Max. cunrrent:lmax=10A color:red

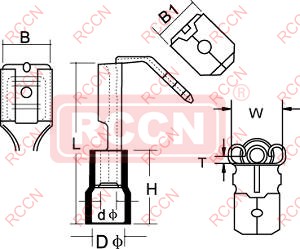

Item No. | NEMA-TAB | DIMENSION | ||||||
T*W | B | B1 | H | Dφ | dφ | L | Red | |
mm | mm | mm | mm | mm | mm | mm | ||
MF 1.25-250 | 0.8×6.35 | 7.4 | 6.3 | 10.0 | 3.8 | 1.7 | 21.5 |
Insulated square:1.5~2.5mm2(AWG16~14) Max. cunrrent:lmax=15A color:blue
Item No. | NEMA-TAB | DIMENSION | ||||||
T*W | B | B1 | H | Dφ | dφ | L | Bule | |
mm | mm | mm | mm | mm | mm | mm | ||
MF 2-250 | 0.8×6.35 | 7.4 | 6.3 | 10.0 | 4.3 | 2.3 | 21.5 |
Insulated square:4~6mm2(AWG12~10) Max. cunrrent:lmax=24A color:yellow
Item No. | NEMA-TAB | DIMENSION | ||||||
T*W | B | B1 | H | Dφ | dφ | L | Yellow | |
mm | mm | mm | mm | mm | mm | mm | ||
MF 5.5-250 | 0.8×6.35 | 7.4 | 6.3 | 13.0 | 5.7 | 3.4 | 25.0 |
