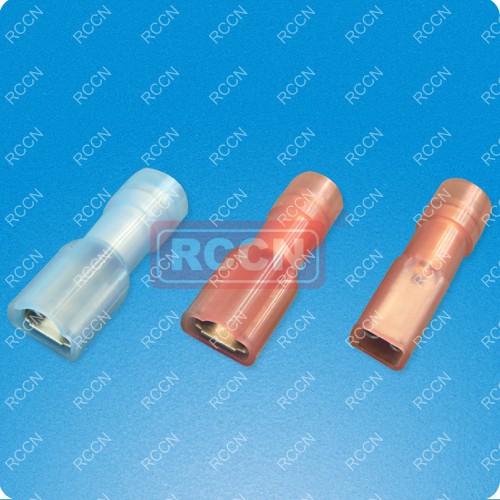

RCCN PNA Nylon Lnsulated Female Lug










Material:copper insulated part:nylon
Note:installed by crimp tool YYT-1



Insulated square：0.5～1.5mm2(AWG22～16) Max. cunrrent：lmax＝10A

Item No. NEMA TAB
T×W		 DIMENSION Color
W F E dφ L
PN1.25-110A 0.8×2.8 2.8 6.5 5.0 1.7 19.5 Red
PN1.25-187A 0.8×4.8 4.8 6.5 5.0 1.7 20
PN1.25-250A 0.8×6.35 6.35 8.0 5.0 1.7 22

Insulated square：1.5～2.5mm2(AWG16～14) Max. cunrrent：lmax＝15A

Item No. NEMA TAB
T×W		 DIMENSION Color
W F E dφ L
PN2-187A 0.8×4.8 6.35 8.0 5.0 2.3 21 Blue
PN2-250A 0.8×6.35 6.35 8.0 5.0 2.3 22

Insulated square：4～6mm2(AWG12～10) Max. cunrrent：lmax＝24A

Item No. NEMA TAB
T×W		 DIMENSION Color
W F E dφ L
PN5.5-250A 0.8×6.35 6.35 8.0 6.0 3.4 25.5 Yellow









RCCN  PNB Nylon Insulated Male Lug








Material:copper insulated part:nylon
Note:installed by crimp tool YYT-1



Insulated square：0.5～1.5mm2(AWG22～16) Max. cunrrent：lmax＝10A

Item No. NEMA TAB
T×W		 DIMENSION Color
W F E dφ L
PN 1.25-250B 0.8×6.35 6.4 9.0 5.0 1.7 24 Red

Insulated square：1.5～2.5mm2(AWG16～14) Max. cunrrent：lmax＝15A

Item No. NEMA TAB
T×W		 DIMENSION Color
W F E dφ L
PN 2-250B 0.8×6.35 6.4 9.0 5.0 2.3 24 Blue

Insulated square：4～6mm2(AWG12～10) Max. cunrrent：lmax＝24A

Item No. NEMA TAB
T×W		 DIMENSION Color
W F E dφ L
PN5.5-250B 0.8×6.35 6.4 9.0 6.0 3.4 25.0 Yellow
