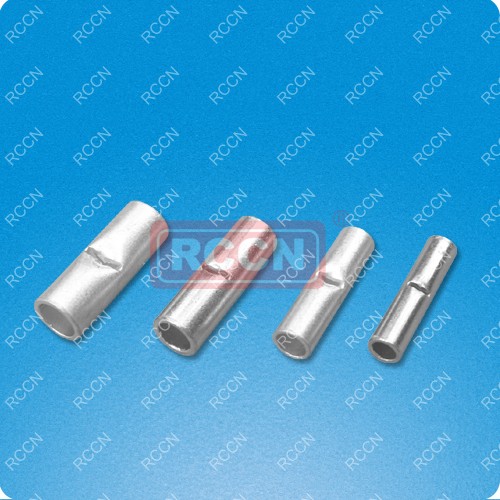

RCCN SHORT BUTT
  |
|
Note:installed by crimp tool YYT-1 |
| Item No. | Conduct square | DIMENSION | INSULATION COLOR |
|||
| A.W.G | mm2 | L | dф | Dф | ||
| mm | mm | mm | ||||
| BC-1.25 | 22~16 | 0.5~1.5 | 15.0 | 2.1 | 3.7 | 19A |
| BC-2 | 16~14 | 1.5~2.5 | 15.0 | 3.0 | 4.0 | 27A |
| BC-3.5 | 14-12 | 2.5-4 | 15.0 | 3.5 | 4.8 | 37A |
| BC-5.5 | 12~10 | 4~6 | 15.0 | 4.1 | 5.5 | 48A |
