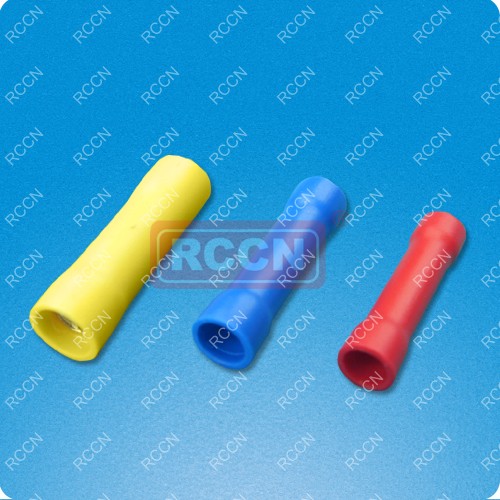

RCCN BF Insulated Butt Spice Terminals
  |
|
Note:installed by crimp tool YYT-1 |
RCCN BF Insulated Butt Spice Terminals Standard style

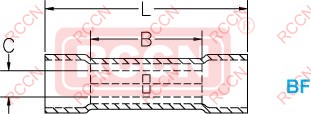

| Item No. | Conduct square | DIMENSION | Imax | INSULATION COLOR |
|||
| A.W.G | mm2 | B | C | L | |||
| mm | mm | mm | |||||
| BF 1.25 | 22～16 | 0.5～1.5 | 15.0 | 1.7 | 26.0 | 19A | Red |
| BF 2 | 16～14 | 1.5～2.5 | 15.0 | 2.3 | 26.0 | 27A | Blue |
| BF 5.5 | 12～10 | 4～6 | 15.0 | 3.4 | 26.0 | 48A | Yellow |
| BF 8 | #8 | 6～10 | 21.0 | 4.5 | 32.0 | 62A | Red |
| BF 14 | #6 | 10～16 | 26.0 | 5.8 | 42.0 | 88A | Blue |
| BF 22 | #4 | 16～25 | 29.0 | 7.7 | 50.0 | 115A | Yellow |
| BF 38 | #2 | 35～50 | 32.0 | 9.4 | 55.0 | 160A | Red |
RCCN SHORT BUTT Short form style
| Item No. | Conduct square | DIMENSION | Imax | INSULATION COLOR |
|||
| A.W.G | mm2 | B | C | L | |||
| mm | mm | mm | |||||
| BFS1.25 | 22～16 | 0.5～1.5 | 8.0 | 1.7 | 16 | 19A | Red |
| BFS2 | 16～14 | 1.5～2.5 | 8.0 | 2.3 | 16 | 27A | Blue |
| BFS5.5 | 12～10 | 4～6 | 3.4 | 3.4 | 20.5 | 48A | Yellow |
