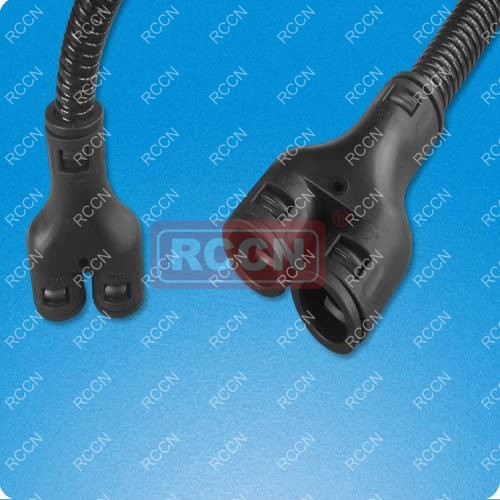

RCCN BGY Plastic Y-Distributor
   |
| Material: Rubber Color: Black Work Temperature:-20°C to 85°C |

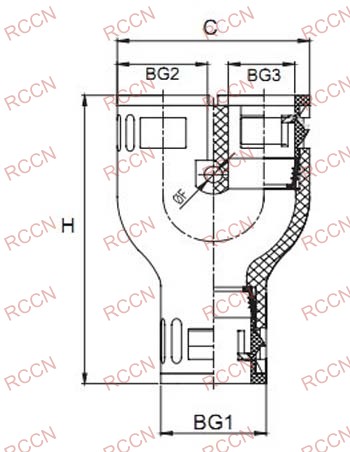

| Item No. | BG2×BG3/BG1 | BG2 | BG3 | BG1 | F | length H |
Wide C |
| BGY2×10.0/13.0NB | 2×10.0/13.0 | BG-07/10 | BG-07/10 | BG-10/13 | 4 | 68.0 | 36.0 |
| BGY2×13.0/15.8NB | 2×13.0/15.8 | BG-10/13 | BG-10/13 | BG-12/15.8 | 4 | 71 | 42 |
| BGY2×15.8/21.2NB | 2×15.8/21.2 | BG-12/15.8 | BG-12/15.8 | BG-17/21.2 | 4 | 75.0 | 52.0 |
| BGY2×15.8/28.5NB | 2×15.8/28.5 | BG-12/15.8 | BG-12/15.8 | BG-23/28.5 | 4 | 75.0 | 52.0 |
| BGY2×21.2/28.5NB | 2×21.2/28.5 | BG-17/21.2 | BG-17/21.2 | BG-23/28.5 | 4 | 76.5 | 3.0 |
| BGY2×28.5/34.5NB | 2×28.5/34.5 | BG-23/28.5 | BG-23/28.5 | BG-29/34.5 | 4 | 80.0 | 80.0 |
| BGY2×34.5/42.5NB | 2×34.5/42.5 | BG-29/34.5 | BG-29/34.5 | BG-36/42.5 | 4 | 98.0 | 94.0 |
| BGY2×42.5/54.5NB | 2×42.5/54.5 | BG-36/42.5 | BG-36/42.5 | BG-48/54.5 | 4 | 110.0 | 110.0 |
| BGY3×10.0NB | 3×10.0 | BG-07/10 | BG-07/10 | BG-07/10 | 4 | 50 | 37 |
| BGY3×13.0NB | 3×13.0 | BG-10/13 | BG-10/13 | BG-10/13 | 4 | 70 | 42 |
| BGY3×15.8NB | 3×15.8 | BG-12/15.8 | BG-12/15.8 | BG-12/15.8 | 4 | 80 | 48 |
| BGY3×18.5NB | 3×18.5 | BG-15/18.5 | BG-15/18.5 | BG-15/18.5 | 4 | 75 | 56 |
| BGY3×21.2NB | 3×21.2 | BG-17/21.2 | BG-17/21.2 | BG-17/21.2 | 4 | 76.5 | 63 |
