RCCN >> product >> RCCN BGT Plastic T-Distributor

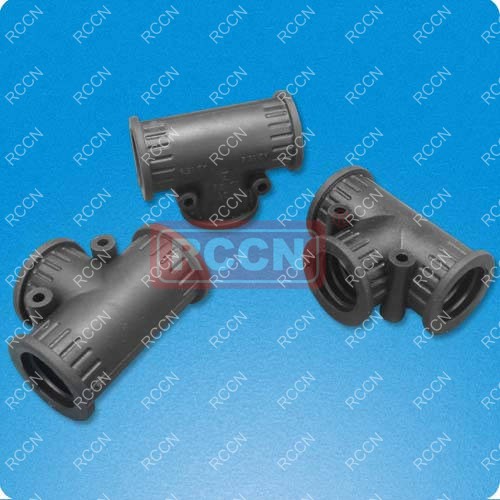

RCCN BGT Plastic T-Distributor




Work Temperature:-20°C to 85°C

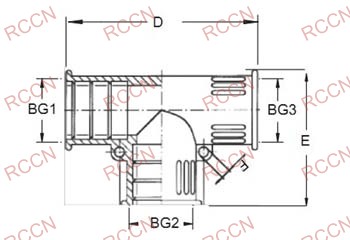

Item No. BG2×BG3/BG1 BG2 BG23 BG1 F length
H
Width
C
Std.Pkg.
pcs
BGT3×10.0B 3×10.0 BG-07 BG-07 BG-07 4 46.5 32.5 10PCS
BGT3×13.0B 3×13.0 BG-10 BG-10 BG-10 4 54.5 36.5
BGT3×15.8B 3×15.8 BG-12 BG-12 BG-12 4 68.0 46.0
BGT3×18.5B 3×18.5 BG-15 BG-15 BG-15 4 81.0 54.5
BGT3×21.2B 3×21.2 BG-17 BG-17 BG-17 4 82.5 62.5
BGT3×28.5B 3×28.5 BG-23 BG-23 BG-23 4 81.0 54.5
BGT3×34.5B 3×34.5 BG-29 BG-29 BG-29 4 82.5 62.5
BGT3×42.5B 3×42.5 BG-36 BG-36 BG-36 4 82.5 62.5
BGT2×15.8/21.2B 2×15.8/21.2 BG-12 BG-12 BG-17 4 75.0 52.0
BGT2×21.2/28.5B 2×21.2/28.5 BG-17 BG-17 BG-23 4 68.0 60.5
BGT2×28.5/34.5B 2×28.5/34.5 BG-23 BG-23 BG-29 4 86.0 77.0
BGT2×34.5/42.5B 2×34.5/42.5 BG-29 BG-29 BG-36 4 98.5 89.0
