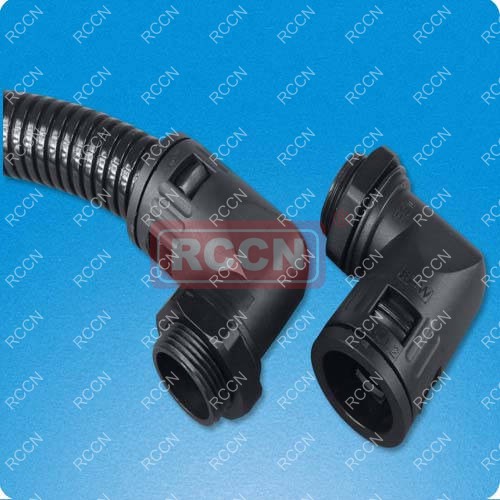

RCCN BQW Elbow Quick Conduit Connector
<
<
   |
| Thread:Metric:PG,NPT,G
Material:NYLON66 Certifcates:CE,ROHS Fireproof rate:UL94V-2 Color:Black-B,Gray-G. Work temperature:-40°C to 85°C Features:Install or discharge without tools,just insert or output the conduit Remarks:Come with lock nut,but without washer, need to buy separatedly |

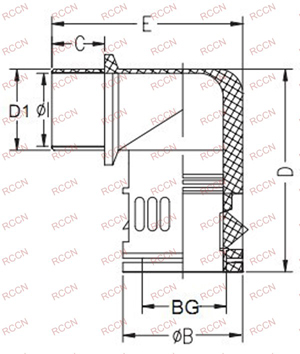

| Item No . | Thread
|
Thread
O.D. D1 |
Thread
Length GL |
Smallest
inner 1Φ |
Largest
outer BΦ |
Total
length H |
|
| Black
Ral9005 |
Gray
Ral7037 |
||||||
| BGW-M | |||||||
| BGW-M12B(BG07) | BGW-M12G(BG07) | M12×1.5 | 12.0 | 10.0 | 8.5 | 17.0 | 33.5 |
| BGW-M16B(BG10) | BGW-M16G(BG10) | M16×1.5 | 16.0 | 10.0 | 12.0 | 20.0 | 36.0 |
| BGW-M16B(BG12) | BGW-M16G(BG12) | M16×1.5 | 16.0 | 10.0 | 12.0 | 23.0 | 42.0 |
| BGW-M18B(BG12) | BGW-M18G(BG12) | M18×1.5 | 18.0 | 10.0 | 15.5 | 23.0 | 42.0 |
| BGW-M20B(BG12) | BGW-M20G(BG12) | M20×1.5 | 20.0 | 10.0 | 15.5 | 23.0 | 42.0 |
| BGW-M20B(BG15) | BGW-M20G(BG15) | M20×1.5 | 20.0 | 11.0 | 13.5 | 26.5 | 46.0 |
| BGW-M20B(BG17) | BGW-M20G(BG17) | M20×1.5 | 20.0 | 12.0 | 14.8 | 29.5 | 50.0 |
| BGW-M22B(BG17) | BGW-M22G(BG17) | M22*1.5 | 22.0 | 12.0 | 18.0 | 29.5 | 59.0 |
| BGW-M24B(BG17) | BGW-M24G(BG17) | M24×1.5 | 24.0 | 13.0 | 18.0 | 29.5 | 50.0 |
| BGW-M25B(BG17) | BGW-M25G(BG17) | M25×1.5 | 25.0 | 13.0 | 14.8 | 29.0 | 46.0 |
| BGW-M25B(BG23) | BGW-M25G(BG23) | M25×1.5 | 25.0 | 13.0 | 18.0 | 29.0 | 50.0 |
| BGW-M32B(BG29) | BGW-M32G(BG29) | M32×1.5 | 32.0 | 15.0 | 24.0 | 44.0 | 67.5 |
| BGW-M40B(BG36) | BGW-M40G(BG36) | M40×1.5 | 40.0 | 15.0 | 32.0 | 52.0 | 83.0 |
| BGW-M50B(BG48) | BGW-M50G(BG48) | M50×1.5 | 50.0 | 16.0 | 39.0 | 64.0 | 88.0 |
| BGW-M63B(BG48) | BGW-M63G(BG48) | M63×1.5 | 63.0 | 16.0 | 53.0 | 64.0 | 88.0 |
| BGW-P | |||||||
| BGW-PG7B(BG07) | BGW-PG7G | PG7 | 12.5 | 10.0 | 8.5 | 17.0 | 33.5 |
| BGW-PG9B(BG10) | BGW-PG9G | PG9 | 15.2 | 10.0 | 12.0 | 20.0 | 36.0 |
| BGW-PG11B(BG12) | BGW-PG11G | PG11 | 18.6 | 10.0 | 12.0 | 23.0 | 42.0 |
| BGW-PG13.5B(BG15) | BGW-PG13.5G | PG13.5 | 20.4 | 11.0 | 13.5 | 26.5 | 46.0 |
| BGW-PG13.5B(BG17) | BGW-PG13.5G | PG13.5 | 20.4 | 12.0 | 18.0 | 29.5 | 50.0 |
| BGW-PG16B(BG17) | BGW-PG16G | PG16 | 22.5 | 12.0 | 18.0 | 29.5 | 50.0 |
| BGW-PG21B(BG23) | BGW-PG21G | PG21 | 28.3 | 12.0 | 24.0 | 37.0 | 57.0 |
| BGW-PG29B(BG29) | BGW-PG29G | PG29 | 37.0 | 12.0 | 32.0 | 44.0 | 67.5 |
| BGW-PG36B(BG36) | BGW-PG36G | PG36 | 47.0 | 12.0 | 36.0 | 52.0 | 83.0 |
| BGW-PG42B(BG48) | BGW-PG42G | PG42 | 54.0 | 14.0 | 48.0 | 64.0 | 88.0 |
| BGW-PG48B(BG48) | BGW-PG48G | PG48 | 59.3 | 14.0 | 48.0 | 64.0 | 88.0 |
| BGW1-M/ | |||||||
| BGW1-M12B(BG07) | BGW1-M12G(BG07) | M12×1.5 | 12.0 | 10.0 | 8.5 | 17.0 | 33.5 |
| BGW1-M16B(BG10) | BGW1-M16G(BG10) | M16×1.5 | 16.0 | 10.0 | 12.0 | 20.0 | 36.0 |
| BGW1-M16B(BG12) | BGW1-M16G(BG12) | M16×1.5 | 16.0 | 10.0 | 12.0 | 23.0 | 42.0 |
| BGW1-M18B(BG12) | BGW1-M18G(BG12) | M18×1.5 | 18.0 | 10.0 | 15.5 | 23.0 | 42.0 |
| BGW1-M20B(BG12) | BGW1-M20G(BG12) | M20×1.5 | 20.0 | 10.0 | 15.5 | 23.0 | 42.0 |
| BGW1-M20B(BG15) | BGW1-M20G(BG15) | M20×1.5 | 20.0 | 11.0 | 13.5 | 26.5 | 46.0 |
| BGW1-M20B(BG17) | BGW1-M20G(BG17) | M20×1.5 | 20.0 | 12.0 | 14.8 | 29.5 | 50.0 |
| BGW1-M22B(BG17) | BGW1-M22G(BG17) | M22*1.5 | 22.0 | 12.0 | 18.0 | 29.5 | 59.0 |
| BGW1-M24B(BG17) | BGW1-M24G(BG17) | M24×1.5 | 24.0 | 13.0 | 18.0 | 29.5 | 50.0 |
| BGW1-M25B(BG17) | BGW1-M25G(BG17) | M25×1.5 | 25.0 | 13.0 | 14.8 | 29.0 | 46.0 |
| BGW1-M25B(BG23) | BGW1-M25G(BG23) | M25×1.5 | 25.0 | 13.0 | 18.0 | 29.0 | 50.0 |
| BGW1-M32B(BG29) | BGW1-M32G(BG29) | M32×1.5 | 32.0 | 15.0 | 24.0 | 44.0 | 67.5 |
| BGW1-M40B(BG36) | BGW1-M40G(BG36) | M40×1.5 | 40.0 | 15.0 | 32.0 | 52.0 | 83.0 |
| BGW1-M50B(BG48) | BGW1-M50G(BG48) | M50×1.5 | 50.0 | 16.0 | 39.0 | 64.0 | 88.0 |
| BGW1-M63B(BG48) | BGW1-M63G(BG48) | M63×1.5 | 63.0 | 16.0 | 53.0 | 64.0 | 88.0 |
| BGW1-P/ | |||||||
| BGW1-PG7B(BG07) | BGW1-PG7G | PG7 | 12.5 | 10.0 | 8.5 | 17.0 | 33.5 |
| BGW1-PG9B(BG10) | BGW1-PG9G | PG9 | 15.2 | 10.0 | 12.0 | 20.0 | 36.0 |
| BGW1-PG11B(BG12) | BGW1-PG11G | PG11 | 18.6 | 10.0 | 12.0 | 23.0 | 42.0 |
| BGW1-PG13.5B(BG15) | BGW1-PG13.5G | PG13.5 | 20.4 | 11.0 | 13.5 | 26.5 | 46.0 |
| BGW1-PG13.5B(BG17) | BGW1-PG13.5G | PG13.5 | 20.4 | 12.0 | 18.0 | 29.5 | 50.0 |
| BGW1-PG16B(BG17) | BGW1-PG16G | PG16 | 22.5 | 12.0 | 18.0 | 29.5 | 50.0 |
| BGW1-PG21B(BG23) | BGW1-PG21G | PG21 | 28.3 | 12.0 | 24.0 | 37.0 | 57.0 |
| BGW1-PG29B(BG29) | BGW1-PG29G | PG29 | 37.0 | 12.0 | 32.0 | 44.0 | 67.5 |
| BGW1-PG36B(BG36) | BGW1-PG36G | PG36 | 47.0 | 12.0 | 36.0 | 52.0 | 83.0 |
| BGW1-PG42B(BG48) | BGW1-PG42G | PG42 | 54.0 | 14.0 | 48.0 | 64.0 | 88.0 |
| BGW1-PG48B(BG48) | BGW1-PG48G | PG48 | 59.3 | 14.0 | 48.0 | 64.0 | 88.0 |
