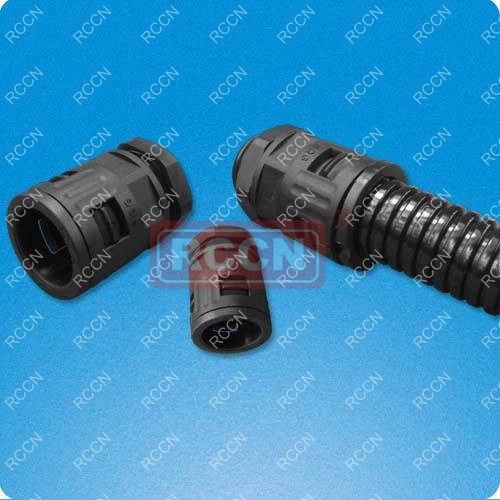

RCCN BGQF Waterproof Conduit Connector
 |
| Thread:Metric,DIN STANDARD

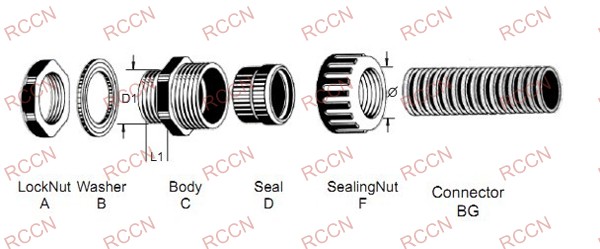

Material:A.C.F parts made of NYLON66,B.D parts made of rubber Certificates:CE,ROHS,SGS。 Fireproof rate:UL94V-2。 Work temperature:-40°C to 150°C。 Protect rate:in bayonet scope,usd with O ring,screw down lock nut,can be up to IP68 Colors:light gray,black,other special colors can be made How to use:input it to panels,fixed with lock nut,insert conduit to sealing nut,screw down the nut. |
| Item No | Thread | Suit to RCCN
conduit item no BG |
Suit to RCCN
conduit item no BG |
Thread
O.D. D1 |
Panel
Mounting Hole |
Thread
Length L1 |
|
Thread length BGQF-M
|
||||||
| BGQF-M12B(BG-07) | M12*1.5 | BG-07 | 10.0 | 12 | 12-12.3 | 8.5 |
| BGQF-M16B(BG-10) | M16*1.5 | BG-10 | 13.0 | 16 | 16-16.3 | 10 |
| BGQF-M16B(BG-12) | M16*1.5 | BG-12 | 15.8 | 16 | 16-16.3 | 10 |
| BGQF-M16B(BG-15) | M16*1.5 | BG-15 | 18.5 | 16 | 16-16.3 | 10 |
| BGQF-M20B(BG-12) | M20*1.5 | BG-12 | 15.8 | 20 | 20-20.3 | 10 |
| BGQF-M20B(BG-15) | M20*1.5 | BG-15 | 18.5 | 20 | 20-20.3 | 10 |
| BGQF-M20B(BG17) | M20*1.5 | BG-17 | 21.2 | 20 | 20-20.3 | 10 |
| BGQF-M25B(BG-23) | M25*1.5 | BG-23 | 28.5 | 25 | 25-25.4 | 12 |
| BGQF-M32B(BG-23) | M32*1.5 | BG-23 | 28.5 | 32 | 32-32.4 | 12 |
| BGQF-M32B(BG-29) | M32*1.5 | BG-29 | 34.5 | 32 | 32-32.4 | 12 |
| BGQF-M40B(BG-36) | M40*1.5 | BG-36 | 42.5 | 40 | 40-40.4 | 12 |
| BGQF-M50B(BG-48) | M50*1.5 | BG-48 | 54.5 | 50 | 50-50.4 | 15 |
| BGQF-M63B(BG-48) | M63*1.5 | BG-48 | 54.5 | 63 | 63-63.4 | 20 |
|
Germany thread BGQF-P
|
||||||
| BGQF-PG7B(BG-07) | PG7 | BG-07 | 10.0 | 12.5 | 12.5-12.8 | 10 |
| BGQF-PG9B(BG-07) | PG9 | BG-07 | 10.0 | 12.5 | 15.2-15.5 | 10 |
| BGQF-PG9B(BG-10) | PG9 | BG-10 | 13.0 | 12.5 | 15.2-15.5 | 10 |
| BGQF-PG11B(BG-10) | PG11 | BG-10 | 13.0 | 18.6 | 18.6-18.9 | 10 |
| BGQF-PG11B(BG-12) | PG11 | BG-12 | 15.8 | 15.2 | 18.6-18.9 | 10 |
| BGQF-PG11B(BG-15.8) | PG11 | BG-12 | 18.5 | 15.2 | 18.6-18.9 | 10 |
| BGQF-PG13.5B(BG-12) | PG13.5 | BG-12 | 15.8 | 20.4 | 20.4-20.7 | 10 |
| BGQF-PG13.5B(BG-15) | PG13.5 | BG-15 | 18.5 | 20.4 | 20.4-20.7 | 10 |
| BGQF-PG16B(BG-12) | PG16 | BG-12 | 15.8 | 22.5 | 22.5-22.8 | 11 |
| BGQF-PG16B(BG-15) | PG16 | BG-15 | 18.5 | 22.5 | 22.5-22.8 | 11 |
| BGQF-PG16B(BG-17) | PG16 | BG-17 | 21.2 | 22.5 | 22.5-22.8 | 11 |
| BGQF-PG21B(BG-23) | PG21 | BG-23 | 28.5 | 28.3 | 28.3-28.7 | 12.5 |
| BGQF-PG29B(BG-29) | PG29 | BG-29 | 34.5 | 37.0 | 37.0-37.4 | 13 |
| BGQF-PG36B(BG-36) | PG36 | BG-36 | 42.5 | 47.0 | 47.0-47.4 | 13 |
| BGQF-PG48B(BG-48) | PG48 | BG-48 | 54.5 | 59.3 | 59.3-59.7 | 16 |
