RCCN lengthsBrass Cable Gland
EMC防电磁 |

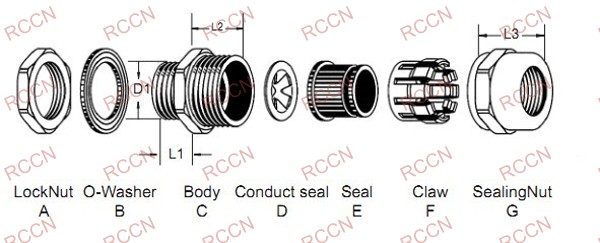

Thread:Metric,DIN PG,G/PF,NPT Material:A.C.G are made of copper with nickel.F is made of nylon 66.B is made of copper.E is made of NBR Certificates:CE,EX Operate:-50°C to 250°C Protection:IP68 Features:EMC cable gland looked like a normal gland, but with its metal intermediate contact disc which can contact the screen of shielded cable, helps to achieve an optimum low-resistance EMC bonding and to be attached to withstand electromagenetic interference. Conduct seal added can be up to EMC, if added earth conduct seal, the effect will be better. |
Item No | Thread | CableRangeΦ | ThreadO.D.D1 | PanelMountingHole | ThreadLengthL1 | JointLengthL2+L3 | SpannersizeA&F | Std.PkgPcs |
MGA12*1.5-6LEMC | M12*1.5 | 3-6 | 12 | 12-12.3 | 6 | 19 | 16 | 100PCS |
MGA12*1.5-8LEMC | M12*1.5 | 4-8 | 12 | 12-12.3 | 6 | 19 | 18 | |
MGA16*1.5-8LEMC | M16*1.5 | 4-8 | 16 | 16-16.3 | 7 | 20 | 18 | |
MGA16*1.5-10LEMC | M16*1.5 | 6-10 | 16 | 16-16.3 | 7 | 20 | 20 | |
MGA18*1.5-8LEMC | M18*1.5 | 4-8 | 18 | 18-18.3 | 8 | 22 | 18 | |
MGA18*1.5-10LEMC | M18*1.5 | 6-10 | 18 | 18-18.3 | 8 | 22 | 20 | |
MGA20*1.5-8LEMC | M20*1.5 | 4-8 | 20 | 20-20.3 | 8 | 22 | 18 | |
MGA20*1.5-10LEMC | M20*1.5 | 6-10 | 20 | 20-20.3 | 8 | 22 | 20 | |
MGA22*1.5-14LEMC | M22*1.5 | 10-14 | 22 | 22-22.3 | 9 | 23 | 24 | 50PCS |
MGA24*1.5-14LEMC | M24*1.5 | 10-14 | 24 | 24-24.3 | 10 | 23 | 24 | |
MGA25*1.5-14LEMC | M25*1.5 | 10-14 | 25 | 25-25.4 | 10 | 23 | 24 | |
MGA25*1.5-18LEMC | M25*1.5 | 13-18 | 25 | 25-25.4 | 10 | 23 | 30 | |
MGA27*2.0-18LEMC | M27*2.0 | 13-18 | 27 | 27-27.4 | 11 | 28 | 30 | |
MGA30*2.0-18LEMC | M30*2.0 | 13-18 | 30 | 30-30.4 | 11 | 28 | 30 | 10PCS |
MGA32*1.5-18LEMC | M32*1.5 | 13-18 | 32 | 32-32.4 | 11 | 32 | 30 | |
MGA32*1.5-25LEMC | M32*1.5 | 18-25 | 32 | 32-32.4 | 11 | 32 | 42 | |
MGA33*2.0-25LEMC | M33*2.0 | 18-25 | 33 | 33-33.4 | 11 | 32 | 42 | |
MGA36*2.0-25LEMC | M36*2.0 | 18-25 | 36 | 36-36.4 | 11 | 32 | 42 | |
MGA40*1.5-25LEMC | M40*1.5 | 18-25 | 40 | 40-40.4 | 12 | 32 | 42 | |
MGA40*1.5-32LEMC | M40*1.5 | 25-32 | 40 | 40-40.4 | 12 | 32 | 42 | |
MGA42*2.0-25LEMC | M42*2.0 | 18-25 | 42 | 42-42.4 | 12 | 36 | 42 | |
MGA48*2.0-32LEMC | M48*2.0 | 25-32 | 48 | 48-48.4 | 13 | 38 | 52 | 5PCS |
MGA50*1.5-32LEMC | M50*1.5 | 25-32 | 50 | 50-50.4 | 13 | 38 | 60 | |
MGA50*1.5-40LEMC | M50*1.5 | 30-40 | 50 | 50-50.4 | 13 | 38 | 60 | |
MGA54*2.0-40LEMC | M54*2.0 | 30-40 | 54 | 54-54.4 | 14 | 38 | 60 | |
MGA56*2.0-40LEMC | M56*2.0 | 30-40 | 56 | 56-56.4 | 14 | 38 | 60 | |
MGA60*2.0-54LEMC | M60*2.0 | 44-54 | 60 | 60-60.4 | 14 | 38 | 77 | |
MGA63*1.5-54LEMC | M63*1.5 | 44-54 | 63 | 63-63.4 | 14 | 38 | 77 |
Thread length |
Item No | Thread | CableRangeΦ | ThreadO.D.D1 | PanelMountingHole | ThreadLengthL1 | JointLengthL2+L3 | Spannersize
A&F |
Std.PkgPcs |
PG Germany thread |
PG7A-6LEMC | PG-7 | 3-6 | 12.5 | 12.5-12.8 | 8 | 19 | 16 | 100PCS |
PG7A-8LEMC | PG-7 | 4-8 | 12.5 | 12.5-12.8 | 8 | 19 | 16 | ||
PG9A-6LEMC | PG-9 | 3-6 | 15.2 | 15.2-15.8 | 9 | 19 | 16 | ||
PG9A-8LEMC | PG-9 | 4-8 | 15.2 | 15.2-15.8 | 9 | 19 | 16 | ||
PG11A-8LEMC | PG-11 | 4-8 | 18.6 | 18.6-18.9 | 10 | 22 | 20 | ||
PG11A-10LEMC | PG-11 | 6-10 | 18.6 | 18.6-18.9 | 10 | 22 | 20 | 20PCS | |
PG13.5A-8LEMC | PG-13.5 | 4-8 | 20.4 | 20.4-20.7 | 10 | 23 | 22 | ||
PG13.5A-10LEMC | PG-13.5 | 6-10 | 20.4 | 20.4-20.7 | 10 | 23 | 22 | 10PCS | |
PG16A-10LEMC | PG-16 | 6-10 | 22.5 | 22.5-22.8 | 11 | 23 | 24 | ||
PG16A-14LEMC | PG-16 | 10-14 | 22.5 | 22.5-22.8 | 11 | 23 | 24 | ||
PG21A-14LEMC | PG-21 | 10-14 | 28.3 | 28.3-28.7 | 13 | 28 | 30 | 100PCS | |
PG21A-18LEMC | PG-21 | 13-18 | 28.3 | 28.3-28.7 | 13 | 28 | 30 | ||
PG29A-18LEMC | PG-29 | 13-18 | 37.0 | 37.0-37.4 | 13 | 32 | 42 | ||
PG29A-25LEMC | PG-29 | 18-25 | 37.0 | 37.0-37.4 | 13 | 32 | 42 | 20PCS | |
PG36A-25LEMC | PG-36 | 18-25 | 47.0 | 47.0-47.4 | 15 | 38 | 52 | ||
PG36A-32LEMC | PG-36 | 25-32 | 47.0 | 47.0-47.4 | 15 | 38 | 52 | 10PCS | |
PG42A-40LEMC | PG-42 | 30-40 | 54.0 | 54.0-54.4 | 18 | 38 | 60 | ||
PG48A-54LEMC | PG-42 | 44-54 | 59.3 | 59.3-59.7 | 18 | 38 | 64 | ||
G tube t hread |
G1/4A-6LEMC | G1/4” | 3-6 | 13.2 | 13.2-13.4 | 8 | 19 | 16 | 100PCS |
G3/8A-8LEMC | G3/8” | 4-8 | 16.5 | 16.5-17.1 | 9 | 20 | 18 | ||
G1/2A-10LEMC | G1/2” | 6-10 | 21.3 | 21.0-21.3 | 11 | 23 | 22 | ||
G3/4A-18LEMC | G3/4” | 13-16 | 26.6 | 26.5-26.6 | 13 | 28 | 30 | 20PCS | |
G1A-25LEMC | G1” | 18-25 | 33.4 | 33.2-33.4 | 13 | 32 | 36 | ||
G1-1/4A-32LEMC | G1 1/4” | 25-32 | 42.1 | 41.9-42.1 | 15 | 36 | 48 | 10PCS | |
G1-1/2A-40LEMC | G1 1/2” | 30-40 | 47.8 | 47.8-48.0 | 18 | 38 | 52 | ||
G2A-54LEMC | G2” | 44-54 | 59.6 | 59.6-60.1 | 18 | 37 | 64 | ||
NPT America thread |
NPT3/8A-6LEMC | NPT3/8” | 4-8 | 16.5 | 16.5-17.1 | 8 | 20 | 18 | |
NPT1/2A-10LEMC | NPT1/2” | 6-10 | 21.3 | 21.0-21.3 | 10 | 23 | 22 | ||
NPT3/4A-18LEMC | NPT3/4” | 13-18 | 26.6 | 26.5-26.6 | 13 | 28 | 30 | ||
NPT1A-25LEMC | NPT1” | 18-25 | 33.4 | 33.2-33.4 | 13 | 32 | 36 | ||
NPT1-1/4A-32LEMC | NPT1 1/4” | 25-32 | 42.1 | 41.9-42.1 | 15 | 36 | 48 | ||
NPT1-1/2A-40LEMC | NPT1 1/2” | 30-40 | 47.8 | 47.8-48.0 | 18 | 38 | 52 | ||
NPT2A-54LEMC | NPT2” | 44-54 | 59.6 | 59.6-60.1 | 18 | 37 | 64 |
