RCCN MS Stainless Steel Cable Gland
 |

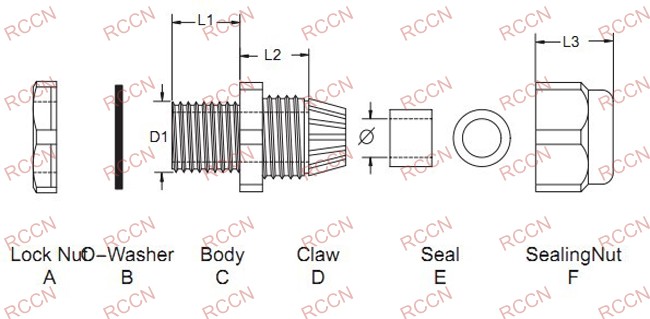

| Thread:Metric Material:A.C.F are made of stainess steel.D is made of insulated plastic .B.E are made of NBR Certificates:CE,EX Protection:IP67。 Product characterstics:Special design of part D and E,used with part F, can save your time, large spread of cable sealing,good re-tensile,waterproof,ashproof,re-salty, Length added is available, such as ：MS20×1.5/L=15 Notes:lock nut is sold separatedly,O-ring is included |
| Item No | Thread | CableRangeΦ | ThreadO.D.D1 | PanelMountingHole | ThreadLengthL1 | JointLengthL2+L3 | SpannersizeA&F | Std.PkgPcs |
| MS12*1.5 | M12*1.5 | 3-6 | 12 | 12-12.3 | 6 | 19 | 16 | 100PCS |
| MS14*1.5 | M14*1.5 | 3-6 | 14 | 14-14.3 | 6 | 19 | 16 | |
| MS16*1.5 | M16*1.5 | 4-8 | 16 | 16-16.3 | 7 | 20 | 18 | |
| MS18*1.5 | M18*1.5 | 6-10 | 18 | 18-18.3 | 8 | 22 | 20 | |
| MS20*1.5 | M20*1.5 | 8-12 | 20 | 20-20.3 | 8 | 23 | 22 | |
| MS22*1.5 | M22*1.5 | 10-14 | 22 | 22-22.3 | 9 | 23 | 24 | |
| MS24*1.5 | M24*1.5 | 10-14 | 24 | 24-24.3 | 10 | 23 | 27 | 50PCS |
| MS25*1.5 | M25*1.5 | 10-14 | 25 | 25-25.4 | 10 | 23 | 28 | |
| MS27*2.0 | M27*2.0 | 13-18 | 27 | 27-27.4 | 11 | 28 | 30 | |
| MS30*2.0 | M30*2.0 | 13-18 | 30 | 30-30.4 | 11 | 28 | 32 | |
| MS32*1.5 | M32*1.5 | 15-22 | 32 | 32-32.4 | 11 | 32 | 36 | |
| MS33*2.0 | M33*2.0 | 15-22 | 33 | 33-33.4 | 11 | 32 | 36 | |
| MS36*2.0 | M36*2.0 | 18-25 | 36 | 36-36.4 | 11 | 32 | 42 | |
| MS40*1.5 | M40*1.5 | 18-25 | 40 | 40-40.4 | 12 | 32 | 45 | 10PCS |
| MS42*2.0 | M42*2.0 | 22-28 | 42 | 42-42.4 | 12 | 36 | 48 | |
| MS48*2.0 | M48*2.0 | 25-32 | 48 | 48-48.4 | 13 | 38 | 52 | |
| MS50*1.5 | M50*1.5 | 26-32 | 50 | 50-50.4 | 13 | 38 | 56 | 5PCS |
| MS54*2.0 | M54*2.0 | 32-38 | 54 | 54-54.4 | 14 | 38 | 60 | |
| MS60*2.0 | M60*2.0 | 37-44 | 60 | 60-60.4 | 14 | 38 | 64 | |
| MS63*1.5 | M63*1.5 | 37-44 | 63 | 63-63.4 | 14 | 38 | 70 |
