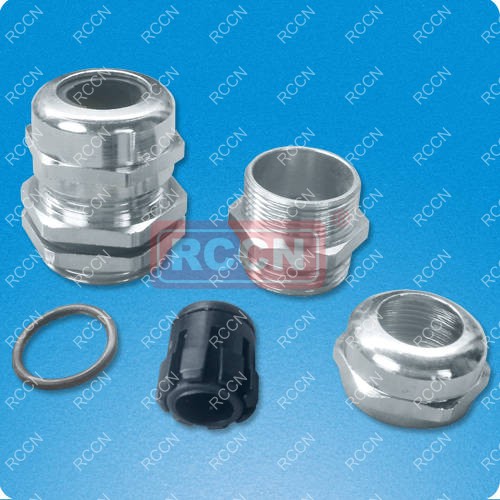

RCCN PGAS Stainless Steel Cable Gland
 |

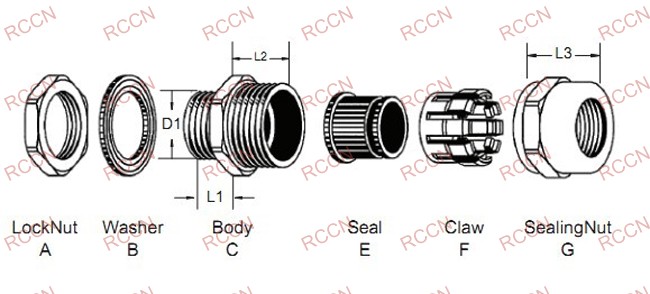

| Thread:DIN PG，G/PF，NPT Mater ial :A.C.F are made of copper wi th nickel .D is made of PA,B.E are made of NBR Cer t i f icates:CE,EX Operate temperature: -50°C to 250°C Protect ion: IP68。 Product characterst ics:Special design of par t D and E,used wi th par t F, can save your t ime, large spread of cable seal ing,good re- tensi le,waterproof ,ashproof , re-sal ty, wi thstand impregnant l ike acid,alkal i ,alcohol ,oi l ,grease Length added is avai lable, such as:PG13.5AS-10/L=15 Note:not includ lock nut ,but wi th O- r ing |
| Thread length |
Item No | Thread | CableRangeΦ | ThreadO.D.
D1 |
PanelMounting
Hole |
ThreadLength
L1 |
JointLength
L2+L3 |
Spannersize
F |
Std.PkgPcs |
| PG Germany thread |
PG7AS-6 | PG-7 | 3-6 | 12.5 | 12.5-12.8 | 6 | 19 | 16 | 100PCS |
| PG7AS-8 | PG-7 | 4-8 | 12.5 | 12.5-12.8 | 6 | 19 | 16 | ||
| PG9AS-6 | PG-9 | 3-6 | 15.2 | 15.2-15.8 | 7 | 19 | 16 | ||
| PG9AS-8 | PG-9 | 4-8 | 15.2 | 15.2-15.8 | 7 | 19 | 16 | ||
| PG11QS-8 | PG-11 | 4-8 | 18.6 | 18.6-18.9 | 8 | 22 | 20 | ||
| PG11QS-10 | PG-11 | 6-10 | 18.6 | 18.6-18.9 | 8 | 22 | 20 | ||
| PG13.5AS-8 | PG-13.5 | 4-8 | 20.4 | 20.4-20.7 | 8 | 23 | 22 | ||
| PG13.5AS-10 | PG-13.5 | 6-10 | 20.4 | 20.4-20.7 | 8 | 23 | 22 | ||
| PG16AS-10 | PG-16 | 6-10 | 22.5 | 22.5-22.8 | 9 | 23 | 24 | ||
| PG16AS-14 | PG-16 | 10-14 | 22.5 | 22.5-22.8 | 9 | 23 | 24 | ||
| PG21AS-14 | PG-21 | 10-14 | 28.3 | 28.3-28.7 | 11 | 28 | 30 | 20PCS | |
| PG21AS-18 | PG-21 | 13-18 | 28.3 | 28.3-28.7 | 11 | 28 | 30 | ||
| PG29AS-18 | PG-29 | 13-18 | 37.0 | 37.0-37.4 | 11 | 32 | 42 | ||
| PG29AS-25 | PG-29 | 18-25 | 37.0 | 37.0-37.4 | 11 | 32 | 42 | ||
| PG36AS-25 | PG-36 | 18-25 | 47.0 | 47.0-47.4 | 13 | 38 | 52 | 10PCS | |
| PG36AS-32 | PG-36 | 25-32 | 47.0 | 47.0-47.4 | 13 | 38 | 52 | ||
| PG42AS-40 | PG-42 | 30-40 | 54.0 | 54.0-54.4 | 14 | 38 | 60 | ||
| PG48AS-54 | PG-48 | 44-54 | 59.3 | 59.3-59.7 | 14 | 38 | 64 | ||
| G tube thread |
G1/4AS-6 | G1/4” | 3-6 | 13.2 | 13.2-13.4 | 6 | 19 | 16 | 100PCS |
| G3/8AS-8 | G3/8” | 4-8 | 16.5 | 16.5-17.1 | 7 | 20 | 18 | ||
| G1/2AS-10 | G1/2” | 8-12 | 21.3 | 21.0-21.3 | 8 | 23 | 22 | ||
| G3/4AS-18 | G3/4” | 13-18 | 26.6 | 26.5-26.6 | 11 | 28 | 30 | 20PCS | |
| G1AS-25 | G1” | 18-25 | 33.4 | 33.2-33.4 | 11 | 32 | 36 | ||
| G1-1/4AS-32 | G1 1/4” | 25-32 | 42.1 | 41.9-42.1 | 12 | 36 | 48 | 10PCS | |
| G1-1/2AS-40 | G1 1/2” | 30-40 | 47.8 | 47.8-48.0 | 13 | 38 | 52 | ||
| G2AS-54 | G2” | 44-54 | 59.6 | 59.6-60.1 | 14 | 37 | 64 | ||
| NPT America thread |
NPT3/8AS-6 | NPT3/8” | 4-8 | 16.5 | 16.5-17.1 | 7 | 20 | 18 | 100PCS |
| NPT1/2AS-10 | NPT1/2” | 6-10 | 21.3 | 21.0-21/3 | 8 | 23 | 22 | ||
| NPT3/4AS-18 | NPT3/4” | 13-18 | 26.6 | 26.5-26.6 | 11 | 28 | 30 | ||
| NPT1AS-25 | NPT1” | 18-25 | 33.4 | 33.2-33.4 | 11 | 32 | 36 | 20PCS | |
| NPT1-1/4AS-32 | NPT1 1/4” | 25-32 | 42.1 | 41.9-42.1 | 12 | 36 | 48 | ||
| NPT1-1/2AS-40 | NPT1 1/2” | 30-40 | 47.8 | 47.8-48.0 | 13 | 38 | 52 | 10PCS | |
| NPT2AS-54 | NPT2” | 44-54 | 59.6 | 59.6-60.1 | 14 | 37 | 64 |
