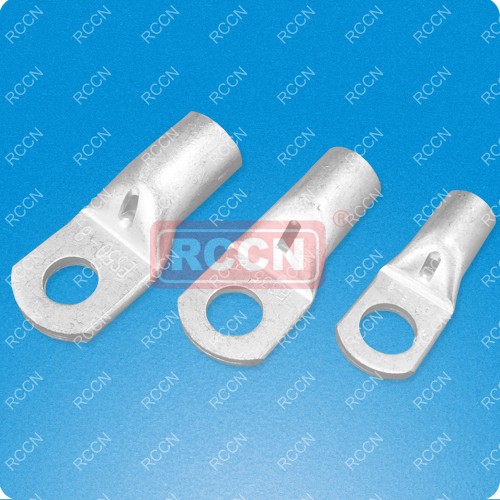

RCCN AES Copper Ture Terminals
  |
|
Use note:this series installed by tool of YYT |
| Item No. |
DIMENSION |
|||||
|
E |
DΦ | dΦ | W | B | L | |
| AES1.5-3 | 3.2 | 3.7 | 1.8 | 8.0 | 6.0 | 16.0 |
| AES1.5-4 | 4.3 | 3.7 | 1.8 | 8.0 | 6.0 | 17.0 |
| AES1.5-5 | 5.3 | 3.7 | 1.8 | 10.0 | 7.0 | 19.0 |
| AES1.5-6 | 6.5 | 3.7 | 1.8 | 10.0 | 7.0 | 20.0 |
| AES2.5-3 | 3.2 | 3.9 | 2.3 | 8.0 | 7.0 | 17.0 |
| AES2.5-4 | 4.3 | 3.9 | 2.3 | 8.0 | 7.0 | 18.0 |
| AES2.5-5 | 5.3 | 3.9 | 2.3 | 10.0 | 7.0 | 20.0 |
| AES2.5-6 | 6.5 | 3.9 | 2.3 | 10.0 | 7.0 | 20.0 |
| AES2.5-8 | 8.3 | 3.9 | 2.3 | 12.5 | 7.0 | 22.5 |
| AES4-4 | 4.3 | 4.7 | 3.0 | 10.0 | 8.0 | 21.0 |
| AES4-5 | 5.3 | 4.7 | 3.0 | 10.0 | 8.0 | 22.0 |
| AES4-6 | 6.5 | 4.7 | 3.0 | 10.0 | 8.0 | 23 |
| AES4-8 | 8.3 | 4.7 | 3.0 | 12.5 | 8.0 | 24 |
| AES6-4 | 4.3 | 5.9 | 4.0 | 10.0 | 9.5 | 24.6 |
| AES6-5 | 5.3 | 5.9 | 4.0 | 10.0 | 9.5 | 24.6 |
| AES6-6 | 6.5 | 5.9 | 4.0 | 11.0 | 9.5 | 24.6 |
| AES6-8 | 8.3 | 5.9 | 4.0 | 12.5 | 9.5 | 27.3 |
| AES6-10 | 10.3 | 5.9 | 4.0 | 15.0 | 9.5 | 28.3 |
| AES10-4 | 4.3 | 6.6 | 4.5 | 11.0 | 13.0 | 30 |
| AES10-5 | 5.3 | 6.6 | 4.5 | 11.0 | 13.0 | 30 |
| AES10-6 | 6.5 | 6.6 | 4.5 | 11.0 | 13.0 | 30 |
| AES10-8 | 8.3 | 6.6 | 4.5 | 12.5 | 13.0 | 30 |
| AES10-10 | 10.3 | 6.6 | 4.5 | 16.0 | 13.0 | 34 |
| AES10-12 | 12.7 | 6.6 | 4.5 | 18.0 | 13.0 | 34 |
| AES16-5 | 5.3 | 7.5 | 5.5 | 11.0 | 14.0 | 30.7 |
| AES16-6 | 6.5 | 7.5 | 5.5 | 11.0 | 14.0 | 30.7 |
| AES16-8 | 8.3 | 7.5 | 5.5 | 12.5 | 14.0 | 30.7 |
| AES16-10 | 10.3 | 7.5 | 5.5 | 16.0 | 14.0 | 36 |
| AES16-12 | 12.7 | 7.5 | 5.5 | 18.0 | 14.0 | 36 |
| AES25-5 | 5.3 | 9.1 | 6.7 | 13.0 | 13.0 | 32 |
| AES25-6 | 6.5 | 9.1 | 6.7 | 13.0 | 13.0 | 32 |
| AES25-8 | 8.3 | 9.1 | 6.7 | 13.0 | 13.0 | 32 |
| AES25-10 | 10.3 | 9.1 | 6.7 | 16.0 | 13.0 | 37 |
| AES25-12 | 12.7 | 9.1 | 6.7 | 18.0 | 13.0 | 37 |
| AES25-14 | 14.8 | 9.1 | 6.7 | 20.0 | 13.0 | 39 |
| AES35-5 | 5.3 | 11 | 8.6 | 16.0 | 16.0 | 37 |
| AES35-6 | 6.5 | 11 | 8.6 | 16.0 | 16.0 | 37 |
| AES35-8 | 8.3 | 11 | 8.6 | 16.0 | 16.0 | 37 |
| AES35-10 | 10.3 | 11 | 8.6 | 16.7 | 16.0 | 41.5 |
| AES35-12 | 12.7 | 11 | 8.6 | 18.0 | 16.0 | 41.5 |
| AES35-14 | 14.8 | 11 | 8.6 | 20.0 | 16.0 | 43.5 |
| AES35-16 | 16.5 | 11 | 8.6 | 23.0 | 16.0 | 45.5 |
| AES50-5 | 5.3 | 12.4 | 9.5 | 18.0 | 17.0 | 41 |
| AES50-6 | 6.5 | 12.4 | 9.5 | 18.0 | 17.0 | 41 |
| AES50-8 | 8.3 | 12.4 | 9.5 | 18.0 | 17.0 | 41 |
| AES50-10 | 10.3 | 12.4 | 9.5 | 18.0 | 17.0 | 44 |
| AES50-12 | 12.7 | 12.4 | 9.5 | 19.0 | 17.0 | 44 |
| AES50-14 | 14.8 | 12.4 | 9.5 | 21.0 | 19.0 | 53 |
| AES50-16 | 16.5 | 12.4 | 9.5 | 23.0 | 19.0 | 53 |
| AES70-5 | 5.3 | 15 | 12 | 22.5 | 21.5 | 52.5 |
| AES70-6 | 6.3 | 15 | 12 | 22.5 | 21.5 | 52.5 |
| AES70-8 | 8.3 | 15 | 12 | 22.5 | 21.5 | 52.5 |
| AES70-10 | 10.3 | 15 | 12 | 22.5 | 21.5 | 52.5 |
| AES70-12 | 12.7 | 15 | 12 | 22.5 | 21.5 | 52.5 |
| AES70-14 | 14.8 | 15 | 12 | 22.5 | 21.5 | 55 |
| AES70-16 | 16.5 | 15 | 24.0 | 24.0 | 20.0 | 55 |
| AES95-8 | 8.3 | 17 | 13.4 | 25.0 | 22.5 | 55 |
| AES95-10 | 10.3 | 17 | 13.4 | 25.0 | 22.5 | 55 |
| AES95-12 | 12.7 | 17 | 13.4 | 25.0 | 22.5 | 55 |
| AES95-14 | 14.8 | 17 | 13.4 | 25.0 | 22.5 | 58.3 |
| AES95-16 | 16.8 | 17 | 13.4 | 25.0 | 22.5 | 58.3 |
| AES120-8 | 8.3 | 19 | 15 | 27.0 | 23.0 | 60 |
| AES120-10 | 10.3 | 19 | 15 | 27.0 | 23.0 | 60 |
| AES120-12 | 12.7 | 19 | 15 | 27.0 | 23.0 | 60 |
| AES120-14 | 14.8 | 19 | 15 | 27.0 | 23.0 | 64 |
| AES120-16 | 16.5 | 19 | 15 | 27.0 | 23.0 | 64 |
| AES150-10 | 10.3 | 21.2 | 16.5 | 30.0 | 27.0 | 67 |
| AES150-12 | 12.7 | 21.2 | 16.5 | 30.0 | 27.0 | 67 |
| AES150-14 | 14.8 | 21.2 | 16.5 | 30.0 | 27.0 | 67 |
| AES150-16 | 16.5 | 21.2 | 16.5 | 30.0 | 27.0 | 71.5 |
| AES150-20 | 20.9 | 21.2 | 16.5 | 30.0 | 27.0 | 71.5 |
| AES185-10 | 10.3 | 23 | 19 | 34.0 | 30.0 | 73 |
| AES185-12 | 12.7 | 23 | 19 | 34.0 | 30.0 | 73 |
| AES185-14 | 14.8 | 23 | 19 | 34.0 | 30.0 | 73 |
| AES185-16 | 16.5 | 23 | 19 | 34.0 | 30.0 | 76 |
| AES185-20 | 20.9 | 23 | 19 | 34.0 | 30.0 | 76 |
| AES240-10 | 10.3 | 26.5 | 21 | 38.0 | 38.0 | 91.5 |
| AES240-12 | 12.7 | 26.5 | 21 | 38.0 | 38.0 | 91.5 |
| AES240-14 | 14.8 | 26.5 | 21 | 38.0 | 38.0 | 91.5 |
| AES240-16 | 16.5 | 26.5 | 21 | 38.0 | 38.0 | 91.5 |
| AES240-20 | 20.9 | 26.5 | 21 | 38.0 | 38.0 | 91.5 |
| AES300-12 | 12.7 | 30 | 24.5 | 43.0 | 42.0 | 98 |
| AES300-14 | 14.8 | 30 | 24.5 | 43.0 | 42.0 | 98 |
| AES300-16 | 16.5 | 30 | 24.5 | 43.0 | 42.0 | 98 |
| AES300-20 | 20.9 | 30 | 24.5 | 43.0 | 42.0 | 98 |
| AES400-12 | 12.7 | 35 | 27 | 49.0 | 44.0 | 104 |
| AES400-16 | 16.5 | 35 | 27 | 49.0 | 44.0 | 104 |
| AES400-20 | 20.9 | 35 | 27 | 49.0 | 44.0 | 104 |
