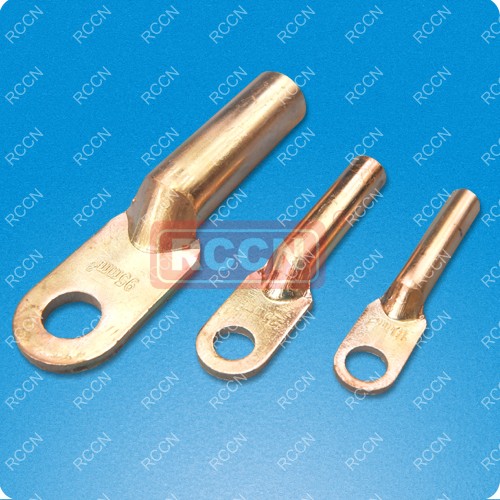

RCCN DTL Cable Lugs High Voltage
Use note:this series installed by tool of YYT-70/YYT-120/YYT-240
Item No. |

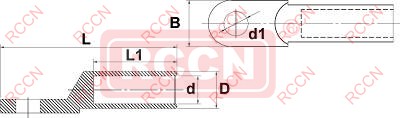

DIMENSION |
||||||
Electric coated |
un-Electric coated |
d1 |
DΦ | dΦ | L | L1 | B |
DTL10-8 | DTL10-8F | 8.5 | 8 | 5.3 | 62 | 28 | 16 |
DTL16-8 | DTL16-8F | 8.5 | 9 | 6.5 | 68 | 30 | 16 |
DTL25-8 | DTL25-8F | 8.5 | 10 | 7.0 | 70 | 33 | 18 |
DTL35-10 | DTL35-10F | 10.5 | 11 | 8.5 | 80 | 36 | 20 |
DTL50-10 | DTL50-10F | 10.5 | 12 | 9.5 | 85 | 38 | 23 |
DTL70-12 | DTL0-12F | 12.5 | 14 | 11.5 | 95 | 43 | 26 |
DTL95-12 | DTL95-12F | 12.5 | 16 | 13.5 | 104 | 46 | 28 |
DTL120-14 | DTL120-14F | 14.5 | 18 | 15.0 | 112 | 49 | 30 |
DTL150-14 | DTL150-14F | 14.5 | 20 | 16.5 | 120 | 51 | 34 |
DTL185-16 | DTL185-16F | 16.5 | 23 | 18.5 | 125 | 55 | 37 |
DTL240-16 | DTL240-16F | 16,.5 | 25 | 21.0 | 136 | 60 | 40 |
DTL300-18 | DTL300-18F | 18.5 | 28 | 23.5 | 155 | 66 | 50 |
DTL400-21 | DTL400-21F | 21 | 31 | 26.5 | 170 | 75 | 50 |
DTL500-21 | DTL500-21F | 21 | 35 | 29 | 190 | 75 | 60 |
DTL630-21 | DTL630-21F | 21 | 42 | 35 | 220 | 85 | 80 |
DTL800-21 | DTL800-21F | 21 | 46 | 38 | 260 | 85 | 100 |
The following CT models for the original directory and old code, the new code above a reference DTL code
Type
|
Ø
|
D
|
d
|
L
|
CT-10
|
6.2
|
8
|
5
|
52
|
CT-16
|
6.2
|
9
|
6
|
57
|
CT-25
|
6.2
|
10
|
7
|
62
|
CT-35
|
8.5
|
11
|
8
|
66
|
CT-50
|
8.5
|
13
|
10
|
72
|
CT-70
|
10.5
|
16
|
12
|
80
|
CT-95
|
10.5
|
18
|
14
|
85
|
CT-120
|
12.5
|
20
|
15
|
96
|
CT-150
|
12.5
|
23
|
17
|
102
|
CT-185
|
14.5
|
25
|
19
|
114
|
CT-240
|
16.5
|
27
|
21
|
120
|
CT-300
|
16.5
|
31
|
24
|
135
|
CT-400
|
18.5
|
34
|
26
|
150
|
CT-500
|
20.5
|
38
|
30
|
170
|
CT-630
|
22.5
|
45
|
35
|
210
|
CT-800
|
22.5
|
50
|
40
|
270
|
Tags: CABLE LUGS-HIGH VOLTAGE
