RCCN C45 Cable Lugs High Voltage
  |
|
Use note:this series installed by tool of YYT-70 |

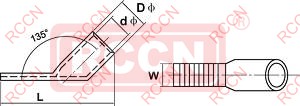

| Item No. |
DIMENSION |
||||
|
DΦ |
dΦ | W | L | Square | |
| mm | mm | mm | mm | mm2 | |
| C45-4 | 5.0 | 3.0 | 6.6 | 24 | 4 |
| C45-6 | 5.9 | 3.9 | 7.0 | 28 | 6 |
| C45-10 | 6.9 | 4.9 | 7.0 | 28 | 10 |
| C45-16 | 5.0 | 5.9 | 7.0 | 31 | 16 |
| C45-25 | 8.1 | 7.3 | 7.0 | 33 | 25 |
| C45-35 | 10.0 | 8.4 | 7.0 | 39 | 35 |
| C45-50 | 11.2 | 9.5 | 7.0 | 45 | 50 |
| C45-70 | 12.5 | 11.2 | 7.0 | 52 | 70 |
