RCCN DT Cable Lugs High Voltage
Use note:this series installed by tool of YYT-70/YYT-120/YYT-240 |
Item No. |

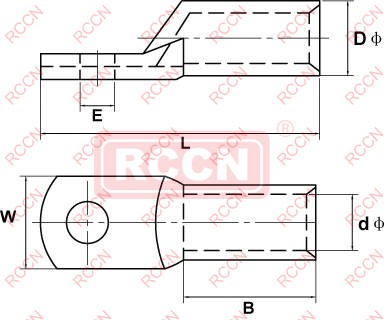

DIMENSION |
|||||
E |
DΦ | dΦ | W | B | L | |
DT10-6 | 6.4 | 7 | 5 | 12.4 | 17 | 36 |
DT10-8 | 8.4 | 7 | 5 | 12.4 | 17 | 36 |
DT16-6 | 6.4 | 9 | 6 | 14 | 32 | 58 |
DT16-8 | 8.4 | 9 | 6 | 14 | 32 | 58 |
DT25-6 | 6.4 | 10 | 7 | 15 | 32 | 58 |
DT25-8 | 8.4 | 10 | 7 | 15 | 32 | 58 |
DT25-10 | 10.5 | 10 | 7 | 17.5 | 32 | 58 |
DT35-6 | 6.4 | 12 | 9 | 16 | 36 | 62 |
DT35-8 | 8.4 | 12 | 9 | 16 | 36 | 62 |
DT35-10 | 10.5 | 12 | 9 | 18 | 36 | 62 |
DT50-8 | 8.4 | 14 | 10 | 20 | 40 | 72 |
DT50-10 | 10.5 | 14 | 10 | 20 | 40 | 72 |
DT70-8 | 8.4 | 16 | 12 | 23 | 42 | 76 |
DT70-10 | 10.5 | 16 | 12 | 23 | 42 | 76 |
DT70-12 | 13.0 | 16 | 12 | 23 | 42 | 76 |
DT95-10 | 10.5 | 18 | 14 | 26 | 44 | 84 |
DT95-12 | 13 | 18 | 14 | 26 | 44 | 84 |
DT120-12 | 13 | 21 | 16 | 30 | 46 | 90 |
DT120-16 | 17 | 21 | 16 | 30 | 46 | 90 |
DT150-12 | 13 | 23 | 17 | 33 | 50 | 98 |
DT150-16 | 17 | 23 | 17 | 33 | 50 | 98 |
DT185-12 | 13 | 25 | 19 | 36 | 52 | 101 |
DT185-16 | 17 | 25 | 19 | 36 | 52 | 101 |
DT240-12 | 13 | 28 | 21.6 | 40 | 52 | 110 |
DT240-16 | 17 | 28 | 21.6 | 40 | 52 | 112 |
DT240-20 | 21 | 28 | 21.6 | 40 | 52 | 112 |
DT300-16 | 17 | 31 | 24 | 45 | 58 | 116 |
DT300-20 | 21 | 31 | 24 | 45 | 58 | 120 |
