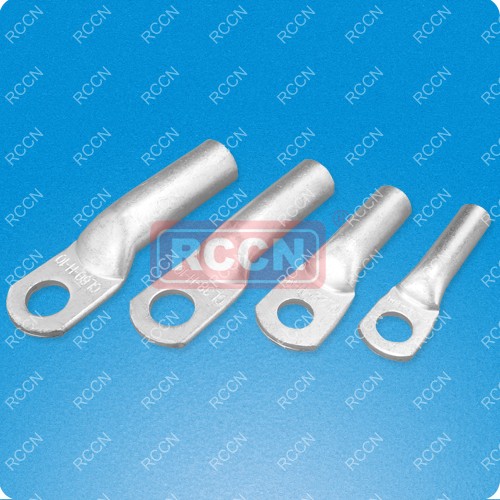

RCCN CL Cable Lugs High Voltage
  |
|
Use note:this series installed by tool of YYT-70/YYT-120/YYT-240 |
| Item No. |

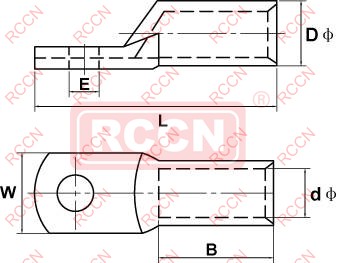

DIMENSION |
|||||
|
E |
DΦ | dΦ | W | B | L | |
| CL14-6 | 6.4 | 8.8 | 5.8 | 18.3 | 28.5 | 50.0 |
| CL22-8 | 8.4 | 11.3 | 7.7 | 18.3 | 28.5 | 52.0 |
| CL38-10 | 10.5 | 12.4 | 9.8 | 18.3 | 34.0 | 64.0 |
| CL38-12 | 13.0 | 12.4 | 9.8 | 18.3 | 34.0 | 64.0 |
| CL60-10 | 10.5 | 14.0 | 11.0 | 20.5 | 36.0 | 70.0 |
| CL60-12 | 13.0 | 14.0 | 11.0 | 20.5 | 36.0 | 70.0 |
| CL70-10 | 10.5 | 15.0 | 12.0 | 21.4 | 38.0 | 72.0 |
| CL70-12 | 13.0 | 15.0 | 12.0 | 21.4 | 38.0 | 72.0 |
| CL80-12 | 13.0 | 16.0 | 13.0 | 23.2 | 38.0 | 75.0 |
| CL100-12 | 13.0 | 18.0 | 14.0 | 26.0 | 40.0 | 75.0 |
| CL125-12 | 13.0 | 20.0 | 16.0 | 28.0 | 40.0 | 85.0 |
| CL150-12 | 13.0 | 22.0 | 17.0 | 31.0 | 46.0 | 94.0 |
| CL180-12 | 13.0 | 23.0 | 18.2 | 33.0 | 46.0 | 98.0 |
| CL200-12 | 13.0 | 26.0 | 20.0 | 36.0 | 48.0 | 104.0 |
| CL250-12 | 13.0 | 28.0 | 22.0 | 40.0 | 48.0 | 114.0 |
| CL325-12 | 13.0 | 32.0 | 25.0 | 45.0 | 50.0 | 118.0 |
| CL400-12 | 13.0 | 37.0 | 30.0 | 48.0 | 60.0 | 130.0 |
| CL500-12 | 13.0 | 40.0 | 31.0 | 58.0 | 60.0 | 150.0 |
