RCCN BL Cable Lugs High Voltage
Difference of BL，BLA，BLB：chicker for
higher voltage
  |
|
Use note:this series installed by tool of YYT-70/YYT-120/YYT-240 |

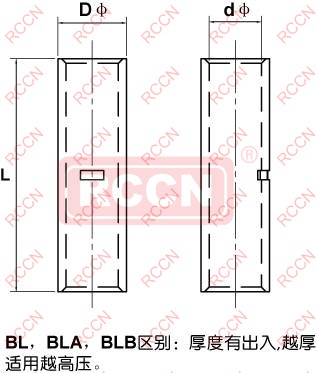

| Item No. |
DIMENSION |
||
|
DΦ |
dΦ | L | |
| mm | mm | mm | |
| BL-1.5 | 3.7 | 1.8 | 20 |
| BL-2.5 | 4.0 | 2.4 | 20 |
| BL-4 | 4.8 | 3.1 | 20 |
| BL-6 | 5.5 | 3.8 | 20 |
| BL-10 | 6.2 | 4.5 | 20 |
| BL-16 | 7.1 | 5.4 | 40 |
| BL-25 | 8.8 | 6.8 | 45 |
| BL-35 | 10.6 | 8.2 | 45 |
| BL-50 | 12.4 | 9.5 | 45 |
| BL-70 | 14.7 | 11.2 | 50 |
| BL-95 | 17.4 | 13.5 | 50 |
| BL-120 | 19.4 | 15.0 | 55 |
| BL-150 | 21.2 | 16.5 | 60 |
| BL-185 | 23.5 | 18.5 | 65 |
| BL-240 | 26.5 | 21.0 | 80 |
| BLA-1.5 | 3.6 | 1.8 | 20 |
| BLA-2.5 | 3.9 | 2.4 | 20 |
| BLA-4 | 4.7 | 3.1 | 20 |
| BLA-6 | 5.4 | 3.8 | 20 |
| BLA-10 | 6.1 | 4.5 | 20 |
| BLA-16 | 7.0 | 5.4 | 40 |
| BLA-25 | 8.6 | 6.8 | 45 |
| BLA-35 | 10.4 | 8.2 | 45 |
| BLA-50 | 12.2 | 9.5 | 45 |
| BLA-70 | 14.4 | 11.2 | 50 |
| BLA-95 | 17.1 | 13.5 | 50 |
| BLA-120 | 19.0 | 15.0 | 55 |
| BLA-150 | 20.8 | 16.5 | 60 |
| BLB-1.5 | 3.4 | 1.8 | 20 |
| BLB-2.5 | 3.7 | 2.4 | 20 |
| BLB-4 | 4.5 | 3.1 | 20 |
| BLB-6 | 5.2 | 3.8 | 20 |
| BLB-10 | 5.9 | 4.5 | 20 |
| BLB-16 | 6.8 | 5.4 | 40 |
| BLB-25 | 8.4 | 6.8 | 45 |
| BLB-35 | 10.2 | 8.2 | 45 |
| BLB-50 | 11.9 | 9.5 | 45 |
| BLB-70 | 14.1 | 11.2 | 50 |
| BLB-95 | 16.7 | 13.5 | 50 |
| BLB-120 | 18.6 | 15.0 | 55 |
| BLB-150 | 20.4 | 16.5 | 60 |
