RCCN OT Cable Lugs High Voltage
|
Item No. |

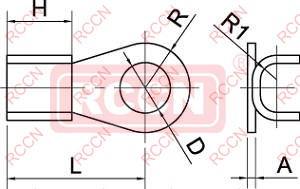

DIMENSION |
|||||
D2 |
H | L | R | R1 | A | |
OT10A-5 | 5.2 | 6.0 | 14.5 | 4.5 | 2 | 0.8 |
OT20A-6 | 6.2 | 7.0 | 17 | 5.5 | 2.5 | 1 |
OT30A-6 | 6.2 | 8.2 | 19 | 5.8 | 3.2 | 1.2 |
OT40A-6 | 6.2 | 9.0 | 19.5 | 6.2 | 3.5 | 1.2 |
OT50A-6 | 6.2 | 9.0 | 21.5 | 6.5 | 3.5 | 1.2 |
OT60A-8 | 8.2 | 10 | 23 | 7 | 4 | 1.4 |
OT80A-8 | 8.2 | 11 | 25 | 8 | 4.5 | 1.5 |
OT100A-8 | 8.2 | 12 | 29 | 8.5 | 5 | 1.5 |
OT150A-10 | 10.2 | 12 | 31 | 9 | 5.5 | 1.6 |
OT200A-10 | 10.2 | 14 | 33 | 10 | 6 | 1.7 |
OT250A-10 | 10.2 | 15.5 | 36 | 10.5 | 6.5 | 2 |
OT300A-12 | 12.2 | 16 | 40 | 11.5 | 7 | 2 |
OT400A-12 | 12.2 | 18 | 43 | 13 | 8 | 2.2 |
OT500A-14 | 14.2 | 20 | 46 | 14.5 | 8.5 | 2.4 |
OT600A-16 | 16.2 | 22 | 50.5 | 16 | 9.5 | 2.8 |
OT800A-18 | 18.2 | 26 | 61 | 17.5 | 12.5 | 3.2 |
OT1000A-18 | 18.2 | 33 | 66 | 20.5 | 15.5 | 3.8 |
The following RT models for the old code, the new code OT series.
Item No. |
DIMENSION | |||||
D2 | E | L | R | R1 | T | |
mm | mm | mm | mm | mm | mm | |
RT10-5 | 5.2 | 6 | 14.5 | 4.5 | 2 | 0.8 |
RT20-6 | 6.2 | 7 | 17 | 5.5 | 2.5 | 1 |
RT30-6 | 6.2 | 8.2 | 19 | 5.8 | 3.2 | 1.2 |
RT40-6 | 6.2 | 9 | 19.5 | 6.2 | 3.5 | 1.2 |
RT50-6 | 6.2 | 9 | 21.5 | 6.5 | 3.5 | 1.2 |
RT60-8 | 8.2 | 10 | 23 | 7 | 4 | 1.4 |
RT80-8 | 8.2 | 11 | 25 | 8 | 4.5 | 1.5 |
RT100-8 | 8.2 | 12 | 29 | 8.5 | 5 | 1.5 |
RT150-10 | 10.2 | 12 | 31 | 9 | 5.5 | 1.6 |
RT200-10 | 10.2 | 14 | 33 | 10 | 6 | 1.7 |
RT250-10 | 10.2 | 15.5 | 36 | 10.5 | 6.5 | 2 |
RT300-12 | 12.2 | 16 | 40 | 11.5 | 7 | 2 |
RT400-14 | 14.2 | 18 | 43 | 13 | 8 | 2.2 |
RT500-14 | 14.2 | 20 | 46 | 14.5 | 8.5 | 2.4 |
RT600-16 | 16.2 | 22 | 50.5 | 16 | 10.5 | 2.8 |
RT800-18 | 18.2 | 26 | 61 | 17.5 | 12.5 | 3.2 |
RT1000-18 | 18.2 | 33 | 66 | 20.5 | 15.5 | 3.8 |
